Threaded pot magnets combine a magnet with a steel cup and a mounting thread. The families below include external studs and internal threads in neodymium or ferrite designs. Compare the model, dimensions and thread before sending an inquiry.
Share the model or a drawing, mating steel, air gap, load direction, environment and quantity. We will review the material, finish, available specification and quotation for your application. The inquiry form requests a quote; it does not place an order or charge you.
Listed pull-off figures are for model comparison. Holding force depends on steel thickness, surface finish, air gap, load direction and test method. Ask us to confirm the applicable test conditions and acceptance criteria with the quote.

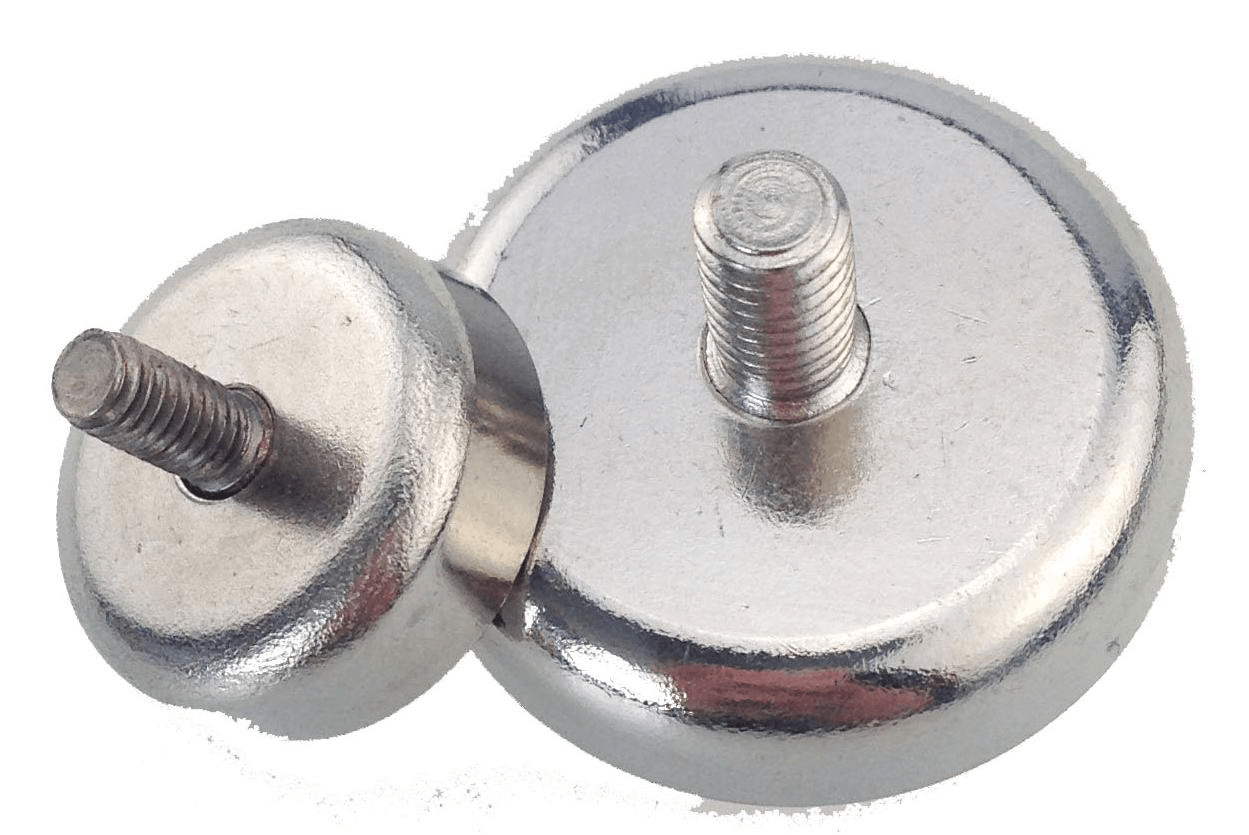

| Model | D (mm) | H (mm) | h (mm) | Thread M | Weight (g) | Pull-off Force (kg) |
|---|---|---|---|---|---|---|
| SMC10 | 10 | 14 | 5 | M3 | 4 | 2 |
| SMC12 | 12 | 14 | 5 | M3 | 5 | 4 |
| SMC16 | 16 | 13.2 | 5 | M4 | 8 | 8 |
| SMC20 | 20 | 16 | 7 | M4 | 17 | 12 |
| SMC25 | 25 | 17 | 8 | M5 | 30 | 23 |
| SMC32 | 32 | 18.5 | 8 | M6 | 50 | 34 |
| SMC36 | 36 | 18 | 8 | M6 | 62 | 50 |
| SMC42 | 42 | 18 | 8.6 | M6 | 89 | 72 |
| LMC48 | 48 | 24 | 11 | M8 | 152 | 81 |
| LMC60 | 60 | 28 | 15 | M8 | 325 | 160 |
| LMC75 | 75 | 35 | 18 | M10 | 620 | 250 |
| *SM means the steel pot is clamped one while LMA means the steel pot is lathed one. | ||||||
| Model | D (mm) | H (mm) | h (mm) | Thread M | Weight (g) | Pull-off Force (kg) |
|---|---|---|---|---|---|---|
| SFC25 | 25 | 16.1 | 7.4 | M4 | 21 | 4.5 |
| SFC32 | 32 | 15.6 | 6.9 | M4 | 30 | 8.5 |
| SFC36 | 36 | 16.6 | 7.9 | M4 | 43 | 11 |
| SFC40 | 40 | 18.4 | 7.9 | M5 | 52 | 13 |
| SFC47 | 47 | 19 | 9 | M5 | 82 | 18 |
| SFC50 | 50 | 19.9 | 9.9 | M5 | 103 | 23 |
| SFC57 | 57 | 20.4 | 10.4 | M5 | 141 | 29 |
| SFC63 | 63 | 26 | 14 | M6 | 211 | 36 |
| SFC80 | 80 | 29 | 18 | M8 | 417 | 62 |
| *Stamped steel pot, ferrite magnet | ||||||

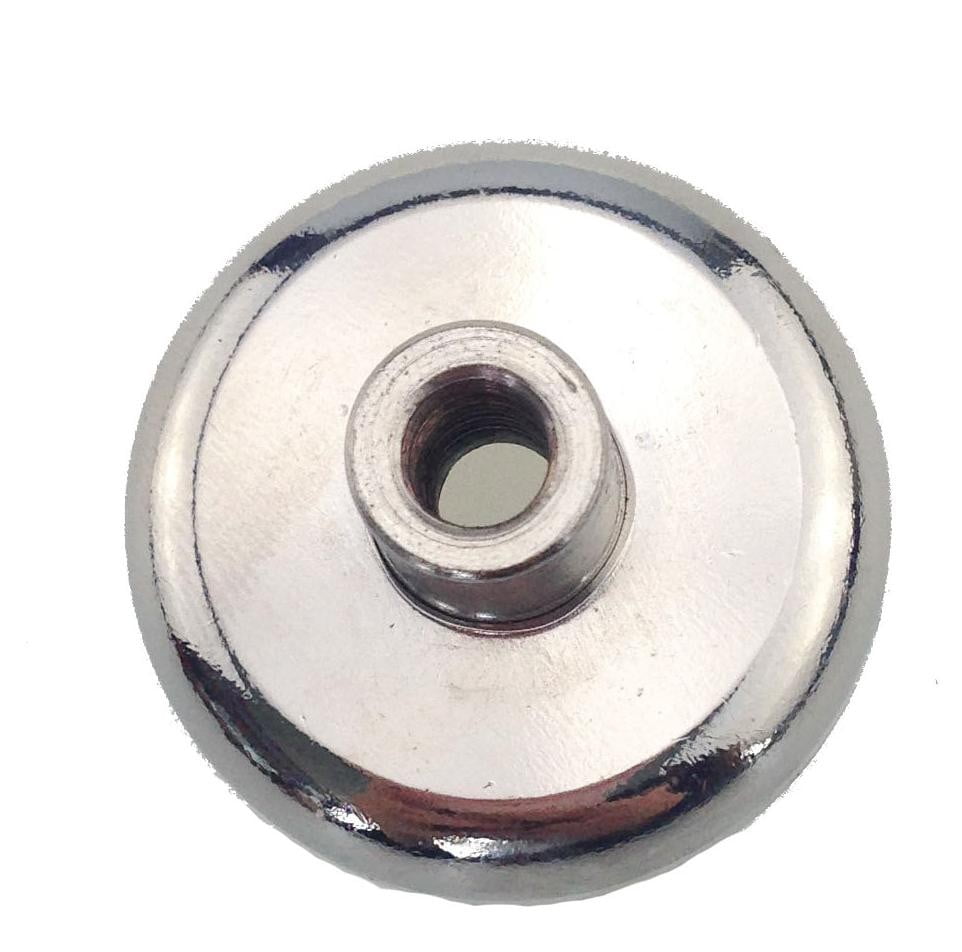

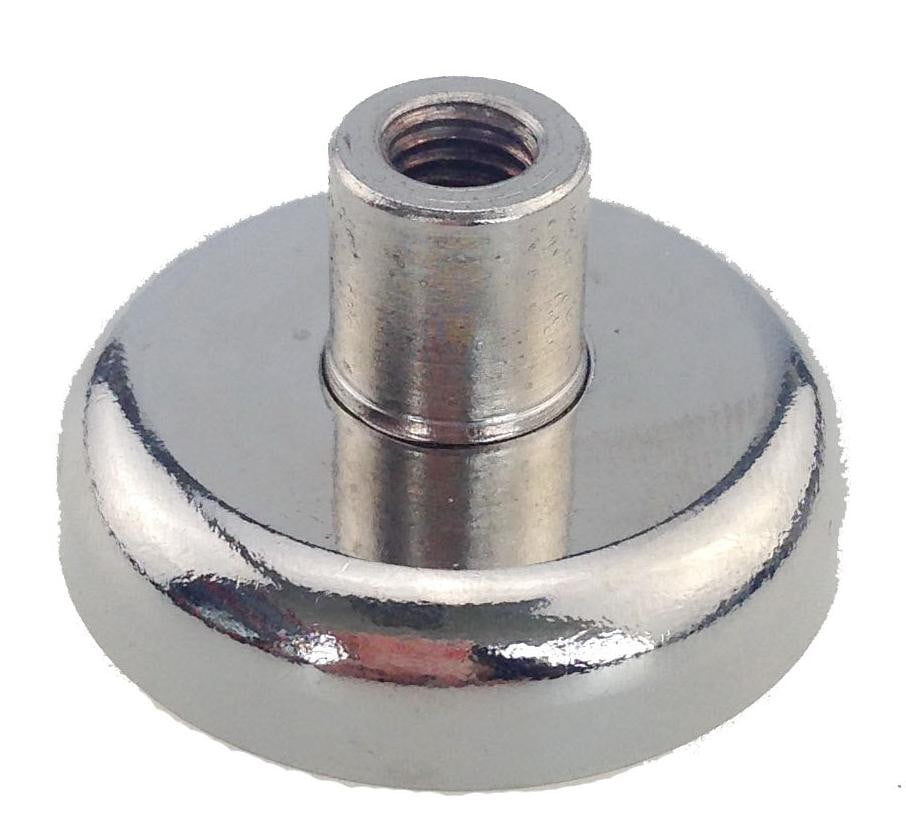

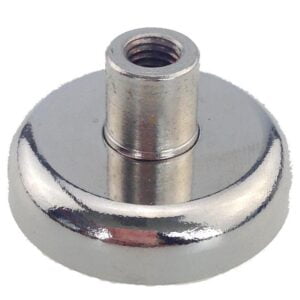

| Model | D (mm) | d (mm) | H (mm) | h (mm) | M | Weight (g) | Pull-off Force (kg) |
|---|---|---|---|---|---|---|---|
| SMD10 | 10 | 6 | 12.5 | 5 | M3 | 4 | 2 |
| SMD12 | 12 | 6 | 12.5 | 5 | M3 | 5 | 4 |
| SMD16 | 16 | 6.5 | 12.6 | 5 | M4 | 9 | 8 |
| SMD20 | 20 | 6.5 | 14 | 7 | M4 | 17 | 12 |
| SMD25 | 25 | 7.5 | 17 | 8 | M5 | 31 | 23 |
| SMD32 | 32 | 10 | 18 | 8 | M6 | 52 | 34 |
| SMD36 | 36 | 10 | 18 | 8 | M6 | 60 | 50 |
| SMD42 | 42 | 10 | 18 | 8.6 | M6 | 95 | 72 |
| LMD48 | 48 | 12 | 24 | 11 | M8 | 160 | 81 |
| LMD60 | 60 | 12 | 28 | 15 | M8 | 340 | 160 |
| LMD75 | 75 | 17 | 35 | 18 | M10 | 635 | 250 |
| *SM means the steel pot is clamped one while LMA means the steel pot is lathed one. | |||||||
| Model | D (mm) | d (mm) | H (mm) | h (mm) | Thread M | Weight (g) | Pull-off Force (kg) |
|---|---|---|---|---|---|---|---|
| SFD25 | 25 | 6.5 | 15.5 | 7.4 | M4 | 22 | 4.5 |
| SFD32 | 32 | 6.5 | 15 | 6.9 | M4 | 31 | 8.5 |
| SFD36 | 36 | 6.5 | 16 | 7.9 | M4 | 45 | 11 |
| SFD40 | 40 | 7.5 | 17.9 | 7.9 | M5 | 55 | 13 |
| SFD47 | 47 | 7.5 | 18.5 | 9 | M5 | 84 | 18 |
| SFD50 | 50 | 7.5 | 19.4 | 9.9 | M5 | 105 | 23 |
| SFD57 | 57 | 7.5 | 19.9 | 10.4 | M5 | 144 | 29 |
| SFD63 | 63 | 10 | 25.5 | 14 | M6 | 215 | 36 |
| SFD80 | 80 | 10 | 31.2 | 18 | M8 | 421 | 62 |
| *Stamped steel pot, ferrite magnet | |||||||
| Model | D (mm) | H (mm) | Thread M | Weight (g) | Pull-off Force (kg) |
|---|---|---|---|---|---|
| SMH16 | 16 | 5 | M3 | 7 | 4 |
| SMH20 | 20 | 7 | M4 | 14 | 8 |
| SMH25 | 25 | 7.7 | M5 | 25 | 17 |
| SMH32 | 32 | 7.7 | M5 | 44 | 27 |
| SMH36 | 36 | 7.5 | M6 | 55 | 36 |
| SMH42 | 42 | 8.6 | M6 | 86 | 50 |
| SMH48 | 48 | 10.6 | M8 | 132 | 70 |
| LMH60 | 60 | 12 | M8 | 229 | 140 |
| LMH75 | 75 | 15 | M10 | 464 | 220 |
| *SM means the steel pot is clamped one while LM means the steel pot is lathed one. | |||||
