Magnetic assemblies combine magnets with housings, fasteners or other components for a defined field or holding function. Explore the options below, then send a drawing, target field or force, mounting interface, operating conditions and inspection requirements for an application-specific quote.
Magnetic Separators

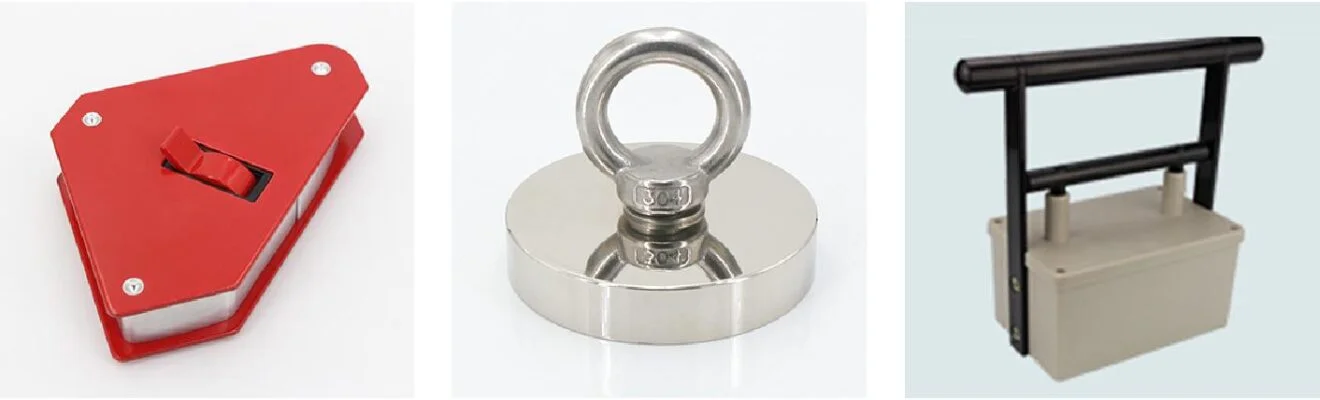

Mounting Magnets

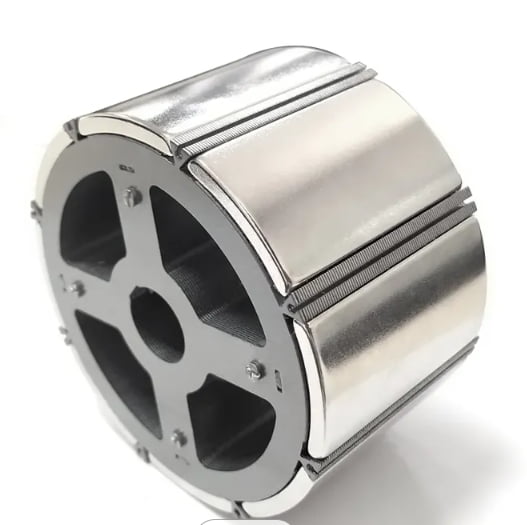

Magnet Rotors

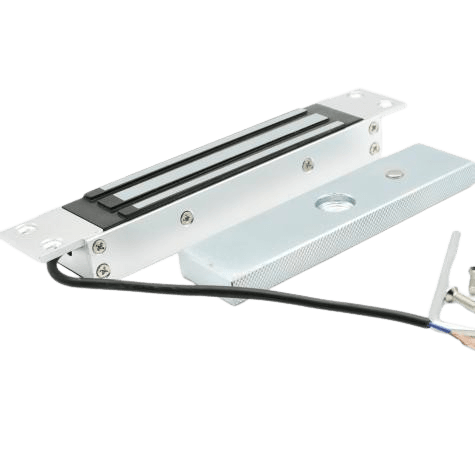

Electro Magnet
Halbach Arrays
Magnetic assemblies combine magnets with housings, fasteners or other components to direct a field, protect a magnet or provide a mounting interface. Common formats include separators, rotors, holding assemblies and arrays.
Field and holding performance depend on the complete geometry, materials, working gap, temperature and load direction. Compare designs against the application requirements and an agreed test method rather than assuming an assembly will always outperform an individual magnet.
Magnets can be combined with metal components to create assemblies with specific functionalities. For example, integrating magnets into a metal bracket or plate can enhance magnetic strength or facilitate mounting.
In specific applications, minimizing magnetic interference with surrounding components is crucial. Magnet assemblies can be designed with non-magnetic materials to achieve this objective.
Welcome to the fascinating world of magnet assemblies! From refrigerator magnets to advanced magnetic technologies, magnets have been captivating us for centuries with their incredible power and potential. In this article, we will explore the various applications, types, and benefits of magnet assemblies.
Whether you realize it or not, magnets play an integral role in our everyday lives. From the smooth operation of electric motors to the efficiency of medical devices, magnets are at the heart of numerous industries. By understanding the different types of magnet assemblies and how they are engineered, we can gain insight into their versatility and limitless possibilities.
Throughout this exploration, we will delve into the science behind magnetism, looking at the fundamental principles that govern magnetic forces. Furthermore, we will examine how magnets are designed to optimize their performance for specific applications.
Join us as we uncover the magnetic attraction and delve into the power and potential of magnet assemblies. From industrial applications to everyday conveniences, these remarkable pieces of technology are sure to leave you with a newfound appreciation for the world of magnets.
Magnetism is a fundamental force of nature that has intrigued scientists and engineers for centuries. At its core, magnetism is the result of the alignment and movement of electrons within a material. When these electrons align in the same direction, they create a magnetic field that can attract or repel other magnetic materials.
The strength of a magnet’s magnetic field is determined by several factors, including the material it is made of and its shape. The most common materials used to create magnets are iron, nickel, and cobalt, although there are other materials that exhibit magnetic properties to varying degrees.
Magnets have two poles, known as the north and south poles. Opposite poles attract each other, while like poles repel each other. This fundamental principle forms the basis for the operation of magnets and magnet assemblies.
Magnet assemblies are engineered to optimize the magnetic field for specific applications. By understanding the principles of magnetism, engineers can design magnet assemblies that harness the full potential of magnetic forces. This knowledge is crucial for the development of advanced magnetic technologies in various industries.
Magnetic assemblies integrate magnetic elements with housings, fasteners, coils or other parts for a defined function. The options shown above include separators, mounting magnets, motor rotors, electromagnets and Halbach arrays. Their construction, working gap and test methods differ with the application.
A permanent magnet can be one component of an assembly; an electromagnet uses a powered coil and control circuit. To compare suitable designs, provide the drawing, target field or holding force, mating surface, operating temperature, duty cycle where applicable, and inspection method.
Magnetic assemblies are specified by the function they must perform and the conditions in which they operate. A motor rotor requires the pole layout, retention method, speed, temperature and balance criteria to be reviewed together. A magnetic separator must be matched to the process stream, target contaminants, cleaning method and agreed field test position.
For mounting assemblies, the load direction, working gap, mating steel and surface condition affect the holding test. A Halbach array is assessed against a specified field region and geometry. Send the operating conditions and acceptance method with the drawing so the assembly can be reviewed for the intended application.
A magnetic assembly can provide a defined mounting interface, protect a magnet from direct contact, or shape the field at a specified working position. A steel housing or flux return can change the field distribution, while an array can direct it toward a chosen region. The result depends on the full geometry, mating material, working gap and load direction and should be checked against an agreed test method.
Service life, holding force, size and maintenance needs depend on the magnet grade, maximum temperature, corrosion exposure, coating, retention method and operating loads. Include those conditions and the acceptance criteria in the RFQ so the design and inspection plan can be reviewed for the intended use.
As technology continues to advance, so does the field of magnet assembly technology. Researchers and engineers are constantly working on improving the performance and efficiency of magnet assemblies.
One area of innovation is the development of stronger and more powerful magnets. Advances in material science have led to the discovery of new magnet materials, such as rare earth magnets, that offer significantly higher magnetic strengths than traditional magnets. These stronger magnets open up new possibilities for applications that require greater magnetic forces.
Another area of advancement is the miniaturization of magnet assemblies. With the increasing demand for smaller and more compact devices, engineers are developing magnet assemblies that can deliver the same performance in a smaller package. This miniaturization allows for the integration of magnet assemblies into a wider range of applications, including wearable devices and microelectronics.
Furthermore, research is being conducted to improve the sustainability of magnet assemblies. Recycling technologies are being developed to recover and reuse magnet materials, reducing the reliance on mining and minimizing environmental impact. Additionally, efforts are being made to develop magnet materials that are free from rare earth elements, which are often associated with environmental and ethical concerns.
In conclusion, magnet assemblies are remarkable pieces of technology that have immense power and potential. Understanding the principles of magnetism and the different types of magnet assemblies allows us to appreciate their versatility and applications in various industries.
From electric motors to medical diagnostics, magnet assemblies play a crucial role in our everyday lives. Their benefits, including high energy efficiency, long lifespan, precise performance, and compact design, make them invaluable in technological advancements.
When choosing magnet assemblies, factors such as magnetic strength, operating temperature range, and size should be considered. Innovations in magnet assembly technology continue to push the boundaries of performance and sustainability, opening up new possibilities for future applications.
So next time you come across a magnet, take a moment to appreciate the magnetic attraction and the incredible power it holds. Magnets truly have the potential to shape the world around us and drive us towards a more efficient and sustainable future.
