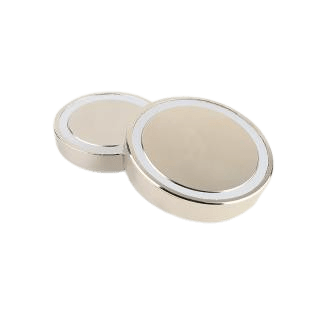

Compare the pot magnet configurations below by model, dimensions, mounting interface and listed pull-off force. Send a model reference or drawing, mating steel, load direction, environment and quantity for a part-specific quote.
Pull-off force note: The listed figures are for model comparison. Actual holding force depends on mating steel, thickness, surface finish, contact gap, load direction and test method. Confirm the test conditions and acceptance criteria with your quote. See our pull force guide.

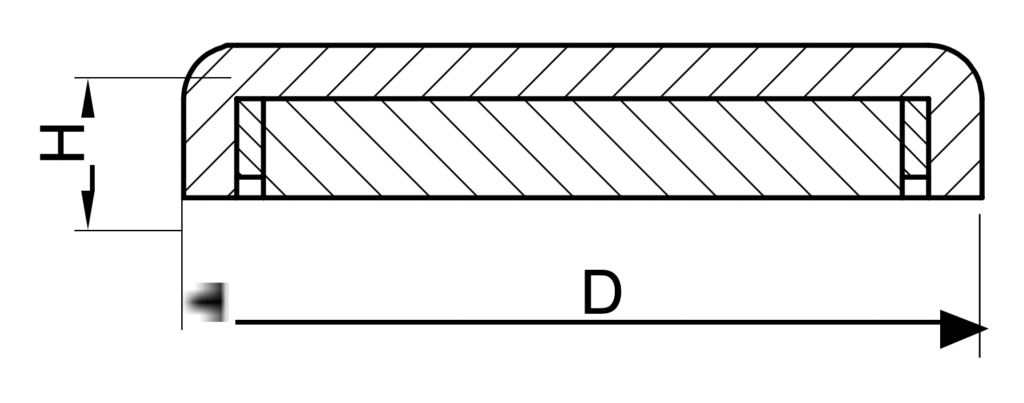

| Model | D (mm) | H (mm) | Weight (g) | Pull-off Force (kg) |
|---|---|---|---|---|
| SMO16 | 16 | 5.2 | 8 | 8 |
| SMO20 | 20 | 7.2 | 16 | 12 |
| SMO25 | 25 | 7.7 | 25 | 22 |
| SMO32 | 32 | 7.8 | 40 | 34 |
| SMO36 | 36 | 7.6 | 51 | 41 |
| SMO40 | 40 | 7.8 | 70 | 51 |
| SMO42 | 42 | 8.8 | 78 | 68 |
| SMO48 | 48 | 10.8 | 121 | 78 |
| SMO60 | 60 | 15 | 245 | 120 |
| SMO75 | 75 | 17.8 | 485 | 178 |
| Model | D (mm) | H (mm) | Weight (g) | Pull-off Force (kg) |
|---|---|---|---|---|
| SMO16 | 16 | 5.2 | 8 | 8 |
| SMO20 | 20 | 7.2 | 16 | 12 |
| SMO25 | 25 | 7.7 | 25 | 22 |
| SMO32 | 32 | 7.8 | 40 | 34 |
| SMO36 | 36 | 7.6 | 51 | 41 |
| SMO40 | 40 | 7.8 | 70 | 51 |
| SMO42 | 42 | 8.8 | 78 | 68 |
| SMO48 | 48 | 10.8 | 121 | 78 |
| SMO60 | 60 | 15 | 245 | 120 |
| SMO75 | 75 | 17.8 | 485 | 178 |
Share your drawing, magnetic requirements and operating conditions. Magnetstek reviews grade, coating, magnetization and inspection options for each custom part.
