| Dimensions | OD 18mm×ID 12.1mm×8mm |
|---|
Material: NdFeB
Reference size: OD 18 mm × ID 12.1 mm × height 8 mm
Grade and coating: confirm against the drawing
Magnetization: confirm the required diametrical or axial pole orientation
Availability and lead time: confirmed in the quotation

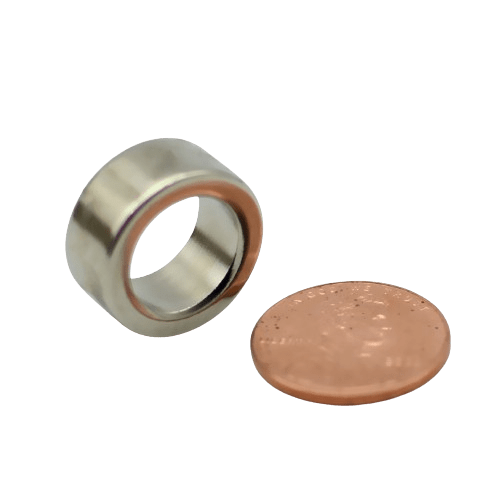

This NdFeB ring is listed with a reference geometry of 18 mm outer diameter, 12.1 mm inner diameter and 8 mm height. Specify the required pole orientation on the drawing: diametrical magnetization places the poles across the diameter, while axial magnetization places them on the flat faces. These are different configurations and must be confirmed for the part being quoted.
For a quotation, provide the drawing, grade or magnetic requirement, coating, operating temperature, working gap, quantity and inspection criteria. Availability and lead time are confirmed for the agreed specification.
