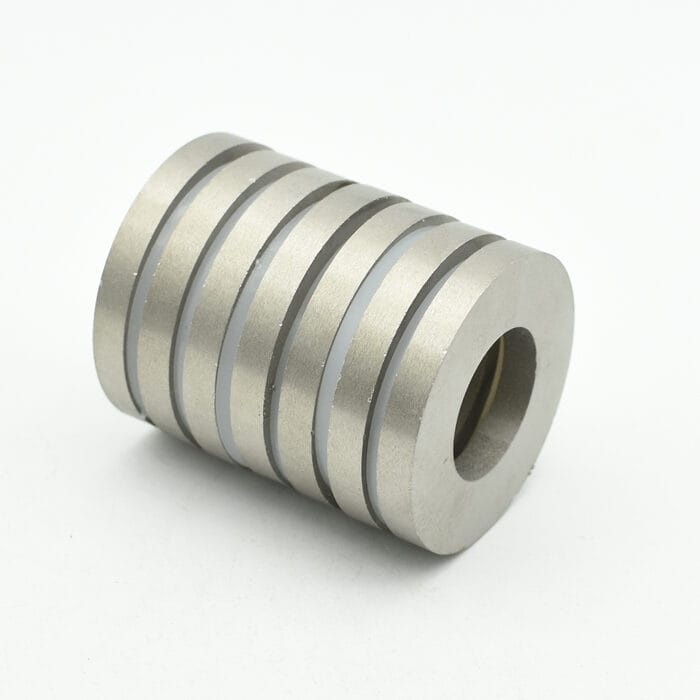

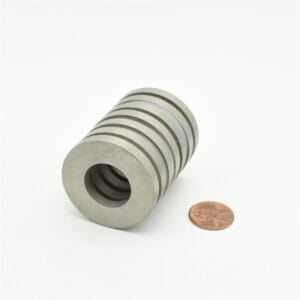

Reference sizes: OD40 × ID20 × 5 mm and OD40 × ID30 × 6 mm. Confirm the required size, grade, magnetization, operating temperature, quantity and inspection criteria for a quotation.
Dimensions: Outer Diameter 40.00 x Inner Diameter 20.00 x Thickness 5.00mm
Outer Diameter 40.00 x Inner Diameter 30.00 x Thickness 6.00mm
Tolerances: ±0.002″ x ±0.002″ (+/-0.05mm x ±0.05mm)
Material: SmCo, Grade YXG28H
Plating/Coating: N/A
Magnetization Direction: Axial (Poles on Flat Ends)
Operating temperature: Confirm the allowable limit for the selected grade, finished geometry and magnetic circuit. The 350°C table value is a grade reference, not a finished-part rating.
