Large Strontium Anisotropic Magnet Ring C8 Grade

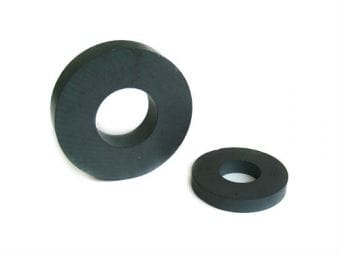

Large Strontium Anisotropic Magnet Ring – C8 Grade

Our Large Strontium Anisotropic Magnet Ring (C8 Grade) is a high-performance permanent magnet engineered for demanding industrial applications. Manufactured from strontium ferrite (SrFe₁₂O₁₉) using advanced sintering techniques, this magnet combines excellent magnetic strength, remarkable stability, and outstanding resistance to demagnetization.

The C8 Grade designation signifies a magnet optimized for high coercivity and moderate energy product, making it ideal for motors, generators, automotive sensors, loudspeakers, and magnetic couplings. Thanks to its anisotropic structure, the magnet is oriented during manufacturing to maximize magnetic performance in a specific direction, resulting in significantly higher magnetic output compared to isotropic grades.

Key Features

• Material: Strontium Ferrite (SrFe₁₂O₁₉)

• Grade: C8 (Anisotropic)

• Shape: Ring

• Magnetization: Axially or radially (upon request)

• Operating Temperature: Up to 250°C (482°F)

• Corrosion Resistance: Excellent; no coating required for most environments

• Stability: Outstanding resistance to demagnetization

• Manufacturing Process: Sintered and oriented for enhanced magnetic properties

• Customization: Available in various dimensions and magnetization patterns

Typical Magnetic Properties (C8 Grade)

• Residual Induction (Br): 3850 – 4000 Gauss

• Coercive Force (Hc): 3300 – 3600 Oersted

• Intrinsic Coercive Force (Hci): > 4000 Oersted

• Maximum Energy Product (BHmax): 3.5 – 4.3 MGOe

(Actual values may vary slightly based on specific dimensions and production conditions.)

Applications

• Automotive Systems: Sensors, ABS systems, electric motors

• Industrial Equipment: Magnetic couplings, gear motors

• Consumer Electronics: Loudspeakers, audio devices

• Renewable Energy: Small wind turbine generators

• Medical Devices: Magnetic resonance components (non-critical areas)

Advantages

• Cost-Effective: Affordable alternative to rare-earth magnets in many applications

• Temperature Resilience: Maintains performance at elevated temperatures

• Magnetic Stability: High resistance to demagnetization, ensuring long-term reliability

• Environmental Resistance: No need for additional coating under normal conditions

Custom Options

We offer custom manufacturing for Large Strontium Anisotropic Magnet Rings to meet specific design requirements. Options include:

• Custom dimensions (outer diameter, inner diameter, thickness)

• Specific magnetization patterns (axial, radial, multipole)

• Precision tolerances for critical applications

For larger orders, specialized magnetization and customized mechanical finishes are also available.
