Introduction
Countersunk neodymium magnets are widely used when a magnet needs to be mechanically fixed with a screw. They are common in furniture, access panels, display fixtures, enclosures, packaging, tool holders, signage, equipment covers, and custom magnetic assemblies. Compared with plain disc magnets, countersunk magnets are easier to mount securely because the screw head sits inside the countersunk hole and helps keep the magnet in place.
However, one detail is often overlooked during purchasing: polarity.
For many applications, especially when two parts need to attract each other, buyers do not only need countersunk magnets of a certain size. They need paired polarity countersunk magnets. This usually means the magnets are supplied as matching north-facing and south-facing pieces so that two mounted components attract correctly after installation.
For example, a customer may ask for 8 mm × 3 mm countersunk round neodymium magnets with paired polarity. The size is important, but the polarity arrangement is just as important. If all magnets are supplied with the same pole facing outward, two installed parts may repel each other instead of attracting. This can cause assembly failure even when the dimensions, coating, and grade are correct.
This guide explains what paired polarity means, how countersunk magnet polarity is described, what buyers should confirm before ordering, and how to avoid common mistakes.
What Are Countersunk Neodymium Magnets?
Countersunk neodymium magnets are round NdFeB magnets with a countersunk hole through the center. The countersunk hole allows the magnet to be attached using a flat-head screw. Once installed, the screw head sits flush or nearly flush with the magnet surface.
They are also known as:
- Countersunk neodymium disc magnets
- Screw hole magnets
- Mounting magnets
- Countersunk round magnets
- Neodymium magnets with countersunk holes
A typical specification may include:
- Outer diameter
- Thickness
- Hole diameter
- Countersink diameter
- Countersink angle
- Magnet grade
- Coating
- Magnetization direction
- Polarity direction
- Quantity
For example:
8 mm diameter × 3 mm thick, countersunk hole, NdFeB, Ni-Cu-Ni coating, paired polarity
This type of magnet is often used in lightweight fastening and removable mounting systems where compact size and strong attraction are needed.

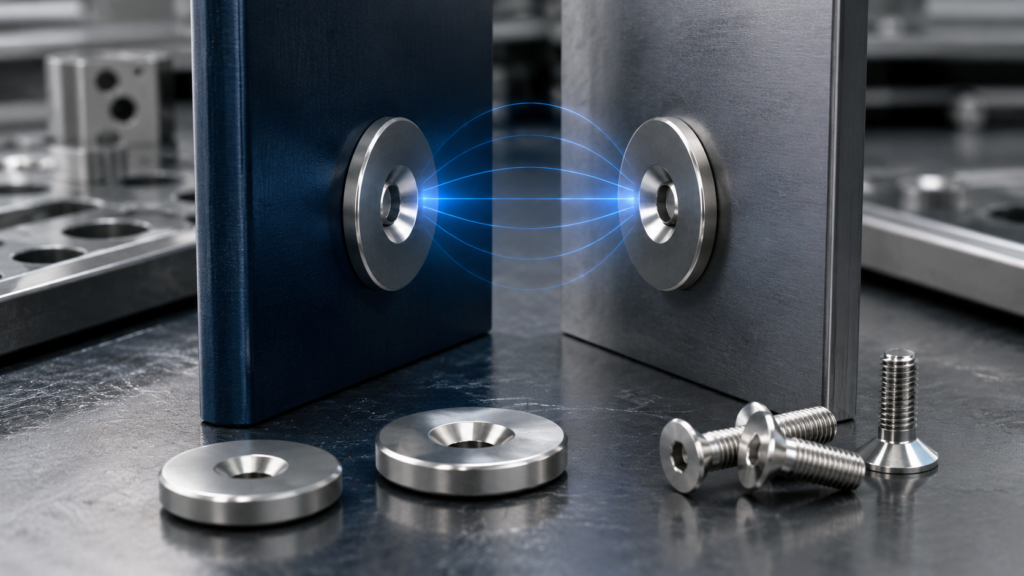

What Does Paired Polarity Mean?
Paired polarity means the magnets are supplied in matching opposite-pole sets. In practical terms, this often means:
- One magnet has the north pole facing outward
- The matching magnet has the south pole facing outward
When these two magnets are mounted opposite each other, they attract.
For countersunk magnets, polarity is usually described by which pole is on the countersunk face or visible mounting face. Buyers may request:
- North pole on countersunk side
- South pole on countersunk side
- North-facing and south-facing pairs
- Matching polarity pairs
- Paired polarity for face-to-face attraction
This matters because a countersunk magnet is not always reversible after installation. Once it is mounted with a screw, the visible face and the hidden face are fixed. If the wrong pole is facing outward, the assembly may not work.
Why Polarity Matters in Countersunk Magnets
Magnets have north and south poles. Opposite poles attract, while like poles repel.
For a plain disc magnet, users may sometimes flip the magnet over to correct polarity during assembly. With countersunk magnets, this is not always possible because the countersunk hole is only on one side. The magnet is designed to accept a screw from a specific side.
That means the polarity of the countersunk face must match the intended installation.
For example, imagine two cabinet doors or access panels that need to close magnetically. If both countersunk magnets have north poles facing outward, they will repel. The customer may think the magnets are defective, but the actual issue is incorrect polarity selection.
For this reason, paired polarity is not a minor detail. It determines whether the magnetic system works.
North Countersunk vs South Countersunk Magnets
Countersunk magnets are commonly supplied in two polarity versions:
North Countersunk Magnet
A north countersunk magnet has the north pole on the countersunk face. When the magnet is installed with the countersunk side outward, the visible magnetic face is north.
South Countersunk Magnet
A south countersunk magnet has the south pole on the countersunk face. When installed with the countersunk side outward, the visible magnetic face is south.
For paired applications, buyers often need both types in equal quantities. For example, for 100 sets, the order may require:
- 100 pcs north countersunk magnets
- 100 pcs south countersunk magnets
This ensures each pair attracts correctly after installation.
Paired Polarity vs Same Polarity
The difference between paired polarity and same polarity is simple but critical.
| Requirement | Meaning | Result |
|---|---|---|
| Paired polarity | One north-facing and one south-facing magnet | Magnets attract |
| Same polarity | All magnets have the same outward pole | Matching parts may repel |
| Unknown polarity | Supplier does not confirm pole direction | High assembly risk |
For many buyers, the phrase “paired polarity” should be clearly defined before quotation. It is better to write exactly what is needed rather than relying on interpretation.
A clear request could be:
Please supply the countersunk magnets in matched pairs: one piece with north pole on the countersunk side and one piece with south pole on the countersunk side.
This removes ambiguity.
Common Applications
Cabinet Doors and Furniture
Small countersunk neodymium magnets are often used in cabinet doors, drawers, panels, and furniture closures. Paired polarity is important when one magnet is mounted on the door and the other is mounted on the frame.
Access Panels and Equipment Covers
Industrial equipment, electronic enclosures, and service panels often use countersunk magnets for removable access. Correct polarity ensures the panel closes securely and aligns properly.
Display Fixtures and Signage
Retail displays, exhibition stands, and signage systems may use paired countersunk magnets to allow repeated installation and removal without visible hardware.
Packaging and Boxes
Premium boxes and reusable packaging may use small magnets for closures. Countersunk magnets are more common in rigid structures where screws are preferred over adhesive bonding.
3D Printed Parts
Countersunk magnets are frequently used in 3D printed fixtures, prototypes, jigs, and hobby assemblies. Paired polarity helps ensure the printed parts connect in the intended direction.
Tool Holders and Workshop Fixtures
For tool storage, magnetic brackets, and light-duty workshop fixtures, countersunk magnets provide a convenient mounting method. In many cases, polarity may be less critical if the magnet attracts to steel. However, polarity becomes critical when magnet-to-magnet attraction is required.
Choosing the Right Size
The size of a countersunk magnet affects holding force, screw selection, and assembly durability.
A magnet described as 8 mm × 3 mm usually means:
- 8 mm outer diameter
- 3 mm thickness
But this is not enough for production. Buyers should also confirm:
- Center hole diameter
- Countersink diameter
- Countersink angle
- Screw size
- Tolerance
- Countersink side
- Pole direction
Small magnets such as 8 mm × 3 mm are compact and useful for lightweight assemblies, but they must be handled carefully. NdFeB magnets are strong but brittle. Over-tightening the screw can crack the magnet, especially near the countersunk hole.
Screw Selection and Installation
Countersunk magnets are designed for flat-head screws. The screw must match the countersink geometry. If the screw head is too large, too small, or has the wrong angle, it may create stress on the magnet.
Important installation tips include:
- Use the correct screw head size
- Do not over-tighten
- Avoid impact during installation
- Ensure the mounting surface is flat
- Use a washer or non-magnetic spacer only if the design allows
- Avoid forcing the screw if alignment is poor
- Confirm polarity before final installation
Steel screws may also influence the local magnetic field. In most mounting applications this is acceptable, but in sensitive sensor or precision applications, screw material should be reviewed.
Magnet Grade Selection
Countersunk neodymium magnets are commonly available in grades such as N35, N42, N45, N48, N50, and N52. Higher grades generally provide stronger magnetic performance, but the best choice depends on the application.
For many mounting applications, N35 or N42 may be sufficient. Higher grades may be used when space is limited and stronger holding force is required.
However, stronger is not always better. Very strong magnets can make removal difficult, increase the risk of cracking during impact, or create handling hazards in small assemblies.
When selecting grade, consider:
- Required holding force
- Magnet size
- Distance between magnets
- Whether the magnet attracts another magnet or steel
- Operating temperature
- Safety factor
- Cost target
For small countersunk magnets, the real performance also depends heavily on air gap, alignment, screw material, coating thickness, and mounting surface.
Coating Options
NdFeB magnets require surface protection because the material is prone to corrosion. The most common coating is Ni-Cu-Ni, which provides a bright metallic surface and general-purpose protection.
Other coating options may include:
| Coating | Features | Typical Use |
|---|---|---|
| Ni-Cu-Ni | Standard metallic coating | General indoor applications |
| Epoxy | Better moisture resistance | Humid environments |
| Zinc | Cost-effective protection | General use |
| Black epoxy | Dark appearance and corrosion protection | Displays, fixtures, consumer products |
| Parylene | Thin conformal coating | Precision applications |
For indoor furniture or general mounting, Ni-Cu-Ni is often acceptable. For outdoor, humid, or chemically exposed environments, a more protective coating may be required.
Coating also adds thickness. For very small magnets, coating thickness may affect fit, especially around the hole and countersunk area.
Magnet-to-Magnet vs Magnet-to-Steel Mounting
Polarity is most important when a magnet attracts another magnet. If a countersunk magnet is attracting to a steel plate, polarity usually does not matter as much because steel is attracted to either pole.
There are two common mounting styles:
Magnet-to-Steel
One countersunk magnet is mounted on one part, and a steel plate or screw target is mounted on the other part. This is simpler because polarity is usually not critical.
Magnet-to-Magnet
Two countersunk magnets are mounted on opposite parts. In this case, paired polarity is essential. One magnet must present north outward, and the other must present south outward.
Magnet-to-magnet mounting can provide stronger attraction than magnet-to-steel in some designs, but it requires more careful polarity control.
Pull Force and Real-World Holding Strength
Catalog pull force values are usually measured under ideal conditions, such as direct contact with a thick, flat steel plate. Real-world assemblies often produce lower holding force.
Factors that reduce holding force include:
- Air gap
- Paint layer
- Plastic cover
- Misalignment
- Thin steel target
- Surface roughness
- Screw head interference
- Coating thickness
- Shear loading instead of direct pull
For countersunk magnets used in pairs, the actual holding strength depends on how accurately the two magnets align. A small offset can reduce attraction.
Buyers should avoid relying only on catalog pull force. Testing in the actual assembly is recommended when performance is critical.
Common Mistakes Buyers Should Avoid
Mistake 1: Not Specifying Polarity
Simply asking for “countersunk magnets” is not enough when paired attraction is required.
Mistake 2: Ordering All Magnets with the Same Pole Facing Outward
If all magnets have the same visible pole, paired parts may repel.
Mistake 3: Ignoring the Countersunk Side
The countersunk side determines how the magnet is mounted. Polarity must be described relative to that side.
Mistake 4: Over-Tightening the Screw
NdFeB magnets are brittle. Excessive screw torque can crack the magnet around the hole.
Mistake 5: Assuming Pull Force Equals Assembly Strength
Actual holding force depends on installation conditions, alignment, and air gap.
Mistake 6: Using Countersunk Magnets for Heavy Structural Loads
Countersunk magnets are useful for holding and positioning, but they should not replace mechanical fasteners in safety-critical load-bearing structures.
How to Specify Paired Polarity Countersunk Magnets
A good RFQ should include all key details:
| RFQ Item | Example |
|---|---|
| Magnet type | Countersunk neodymium disc magnet |
| Size | 8 mm diameter × 3 mm thick |
| Hole type | Countersunk hole |
| Screw size | M2 or as required |
| Grade | N35, N42, N52, or supplier recommendation |
| Coating | Ni-Cu-Ni, epoxy, or black epoxy |
| Polarity | Paired polarity |
| Polarity detail | North countersunk + south countersunk pairs |
| Quantity | Number of pieces or number of pairs |
| Application | Cabinet, enclosure, fixture, panel, etc. |
| Drawing | Recommended for hole and countersink details |
A clear RFQ could be written as:
We need 8 mm × 3 mm countersunk round neodymium magnets, supplied in paired polarity. Please quote matched pairs, with one magnet north pole on the countersunk side and one magnet south pole on the countersunk side. Ni-Cu-Ni coating is acceptable. Please confirm available grade, screw hole size, MOQ, and sample availability.
FAQ
What does paired polarity mean for countersunk magnets?
It means the magnets are supplied as matching opposite-pole pieces, usually one north-facing and one south-facing, so they attract each other after installation.
Do I need paired polarity if the magnet attracts steel?
Usually no. If the magnet only attracts a steel plate, either pole can attract steel. Paired polarity is mainly important for magnet-to-magnet mounting.
What is a north countersunk magnet?
It is a countersunk magnet with the north pole on the countersunk face.
What is a south countersunk magnet?
It is a countersunk magnet with the south pole on the countersunk face.
Can I flip a countersunk magnet to change polarity?
Usually not in the same installation, because the countersunk hole is designed for screw mounting from one side.
Are countersunk neodymium magnets brittle?
Yes. NdFeB magnets are hard and brittle. The area around the countersunk hole can crack if the screw is over-tightened.
Which coating is best for countersunk magnets?
Ni-Cu-Ni is common for general use. Epoxy or other coatings may be better for humid or outdoor environments.
What grade should I choose?
For general mounting, N35 or N42 may be enough. Higher grades can provide stronger attraction but may not always be necessary.
What information is needed for quotation?
Size, countersunk hole dimensions, grade, coating, polarity direction, quantity, screw size, and application details are recommended.
Can samples be supplied?
Sample availability depends on size, polarity, grade, coating, and stock. For paired polarity magnets, both north-facing and south-facing versions should be confirmed.
Conclusion
Paired polarity countersunk magnets are simple components, but correct specification is essential. When two countersunk magnets are mounted opposite each other, the outward-facing poles must be opposite so the parts attract. If polarity is not controlled, the finished assembly may repel or fail to close properly.
For buyers requesting magnets such as 8 mm × 3 mm countersunk round neodymium magnets with paired polarity, the key details include size, hole geometry, screw type, coating, grade, and especially whether the countersunk side should be north-facing or south-facing.
Magnetstek supports custom countersunk neodymium magnets in different sizes, coatings, grades, and polarity arrangements. For accurate quotation, provide the required dimensions, screw information, polarity requirement, quantity, and application details.
