10 Types of Magnetism: What Each Term Means

Table of Contents

Search for “types of magnetism” and you will find lists that put ferromagnetism beside electromagnets and even Earth’s magnetic field. Those terms are useful, but they do not name ten equivalent material properties. The first six below describe magnetic behavior or ordering; the last four describe components or a source of magnetic field. That distinction matters when a drawing needs a material, a magnetic circuit, or a finished assembly.

Six ways materials respond to a magnetic field

1. Ferromagnetism

Neighboring magnetic moments favor parallel alignment. Iron, cobalt and nickel are familiar examples. A ferromagnetic part can form domains and show hysteresis, but ferromagnetic does not automatically mean a useful permanent magnet. A soft iron core and a hard magnetic alloy may both be ferromagnetic while behaving very differently after the magnetizing field is removed.

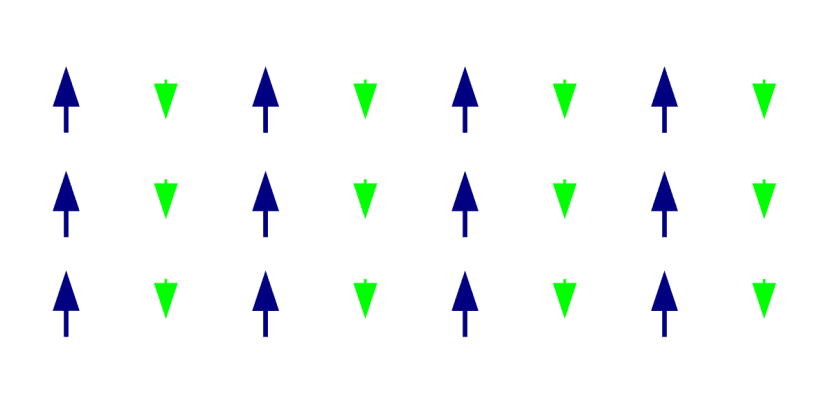

2. Ferrimagnetism

Moments on different sublattices point in opposing directions, but their contributions are unequal, so a net magnetization remains. Magnetite and many ferrites show ferrimagnetic behavior. The word ferrite alone does not settle the application: hard ferrites can be permanent magnets, while soft ferrites are selected for magnetic cores. Grade and loss requirements matter.

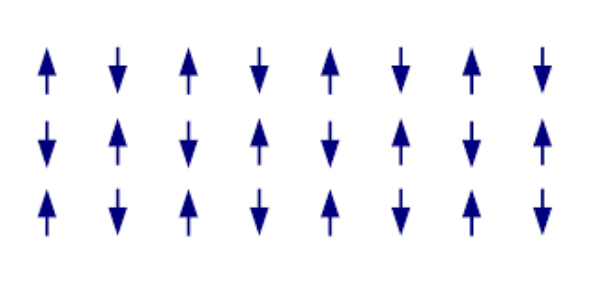

3. Antiferromagnetism

Opposing ordered moments largely cancel. This arrangement comes from interactions within the material; it is not created simply by applying an external field. Antiferromagnetic order also depends on temperature. It is an important materials-science concept, but usually not the property a buyer means when asking for a conventional holding or motor magnet.

4. Paramagnetism

A paramagnetic material is weakly attracted by an applied field and does not retain that field-induced alignment in the same way as a hard permanent magnet. Aluminum and platinum are examples. A weak attraction in a strong laboratory field should not be confused with the pull of a commercial magnet assembly.

5. Diamagnetism

An applied field induces a small opposing response. Copper and bismuth are examples where diamagnetism can be observed. It is generally weak; describing a component as “nonmagnetic” is not a complete specification when a sensor or precision instrument has a measurable stray-field limit.

6. Superparamagnetism

Some sufficiently small magnetic particles have moments that fluctuate because of thermal energy. Their measured response depends on particle size, temperature and observation time. This is a particle-scale regime, not a synonym for an especially strong bulk magnet. It should not be used to imply that a component is approved for a medical or data-storage application.

Four other terms often included in a “types” list

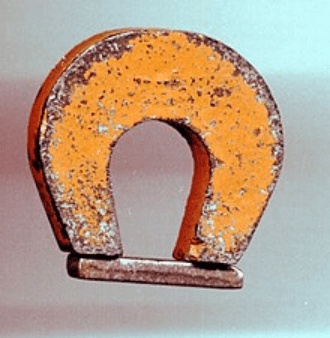

7. Permanent magnets

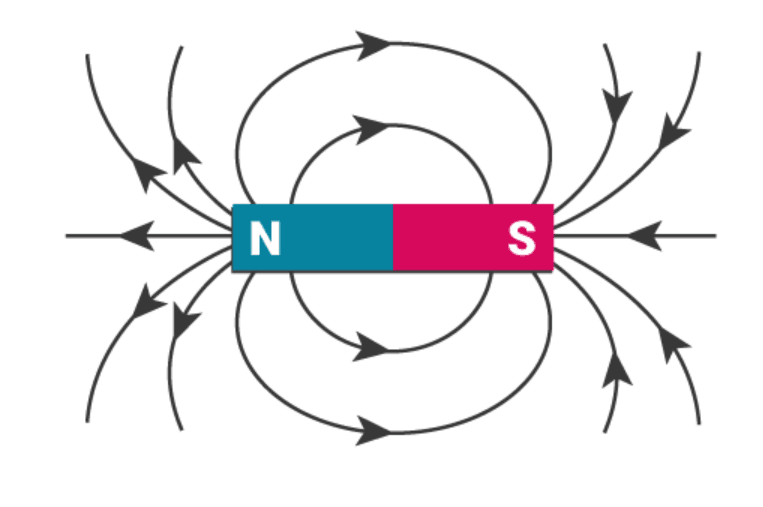

This is an engineering category: a magnet retains useful magnetization after an applied magnetizing field is removed. NdFeB, SmCo, AlNiCo and hard ferrite are material families, each with grade-dependent properties. “Permanent” does not mean indefinitely unchanged; heat, opposing fields, corrosion and mechanical damage can reduce performance. Start with the required field or force at the working gap, not the material name alone.

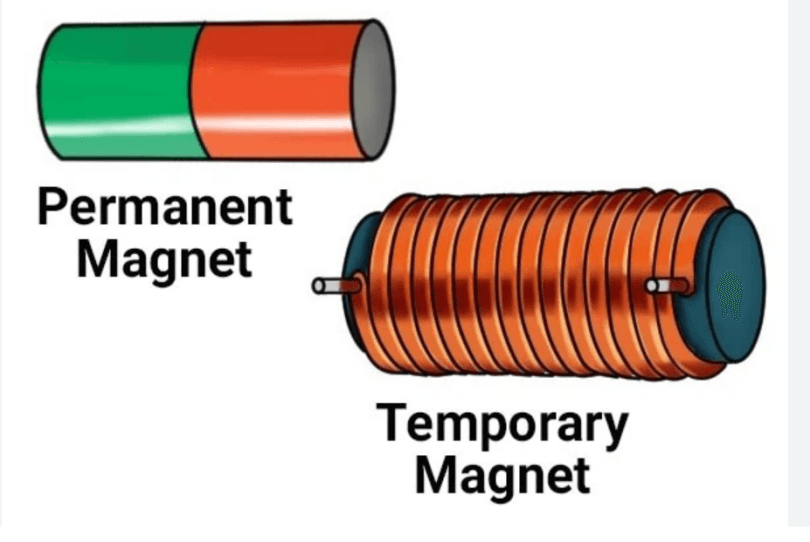

8. Temporary magnets and soft magnetic components

Soft magnetic materials are chosen because they magnetize and demagnetize readily. They can guide flux in a yoke, transformer or electromagnet core. They may retain some residual magnetization, so “temporary” is a shorthand rather than a guarantee of zero remanence. Core geometry, saturation, frequency and loss are more useful specification terms.

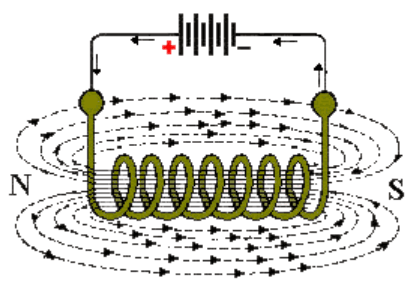

9. Electromagnets

An electric current produces the field of a coil; a magnetic core can shape that field. An electromagnet is a device, not a separate type of atomic magnetic order. Force depends strongly on the actual air gap and pole geometry, while heating depends on current and duty cycle. See our electromagnet design guide for the inputs needed to evaluate a coil-and-core concept.

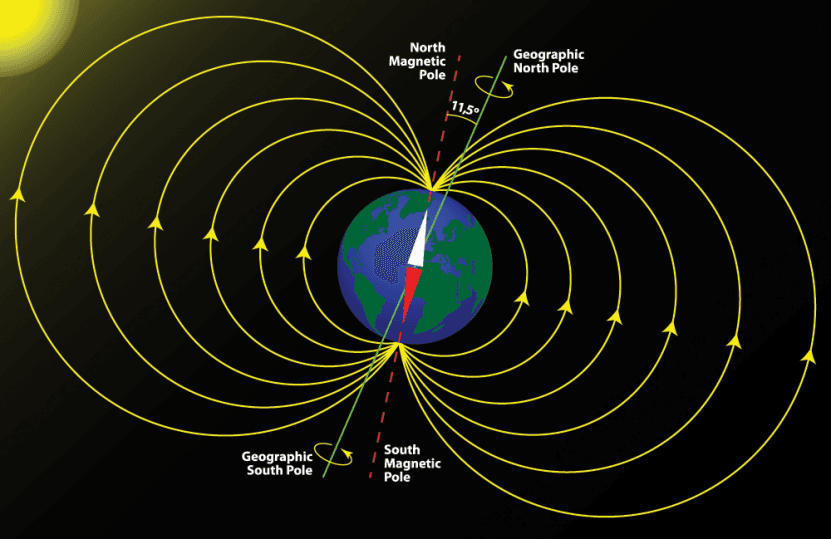

10. Earth’s magnetic field

Earth has a magnetic field, but it is not a tenth material class or a giant solid permanent magnet. Motion of electrically conducting fluid in the outer core sustains the geodynamo. This field matters to compasses and some sensing systems; its presence does not tell you which material to order for a machine.

Which distinction belongs on a magnet drawing?

For a custom permanent magnet, identify the assembly requirement first: field or force at a stated working gap, operating temperature, available space, magnetization direction, coating or environment, quantity and inspection method. The supplier can then review NdFeB, SmCo, ferrite or another candidate against that specification. If the requirement is a powered device, include voltage, duty cycle and the position at which force is needed. A magnet, core or assembly quote should be distinguished from a complete actuator quote.

Send Magnetstek your drawing and operating conditions to discuss the applicable material or magnetic assembly. Availability, grade and acceptance criteria are confirmed for the particular inquiry.
