Have you ever faced the challenge of designing a compact magnetic system that still needs high torque and stability? Whether you’re engineering a high-speed rotary sensor or a silent electric motor, getting the magnetic configuration right is everything. Many OEM designers are now turning to 25mm large-size diametrically magnetized NdFeB ring magnets—and for good reason.

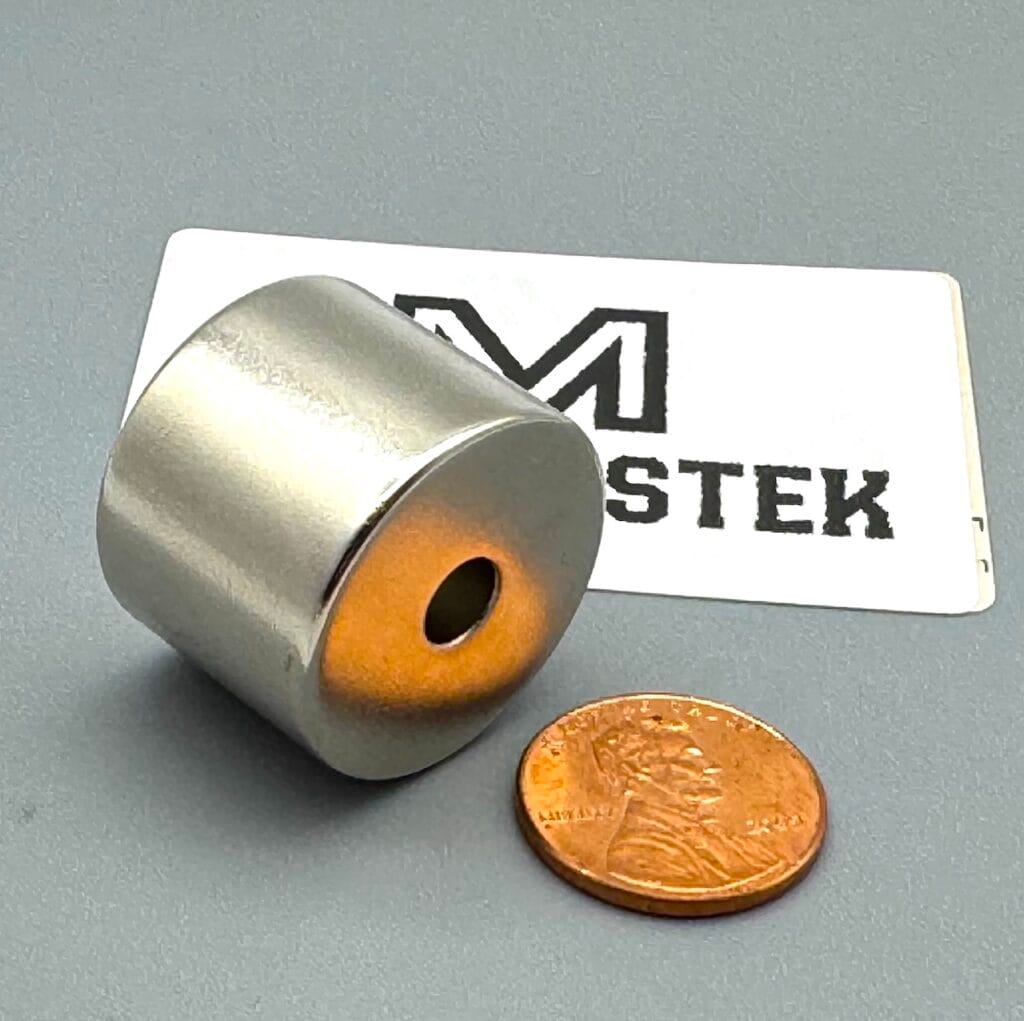

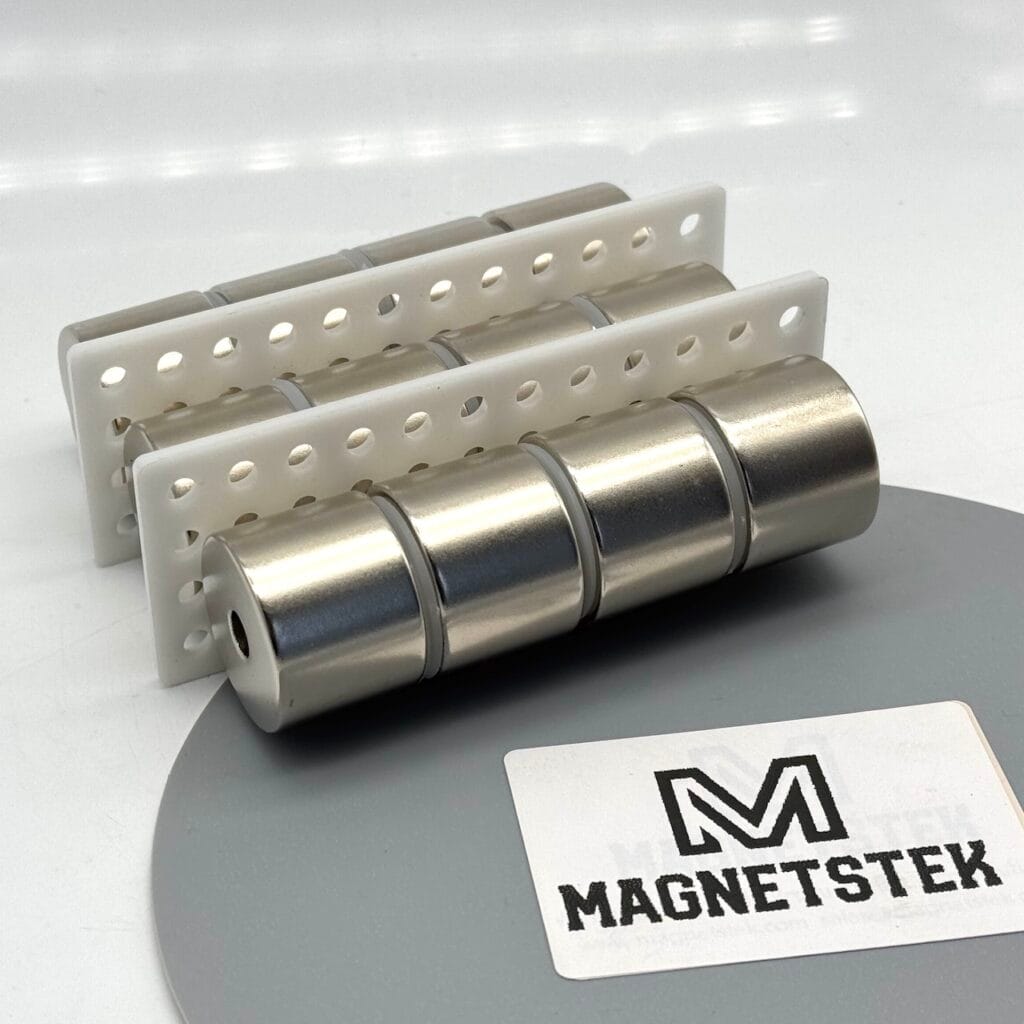

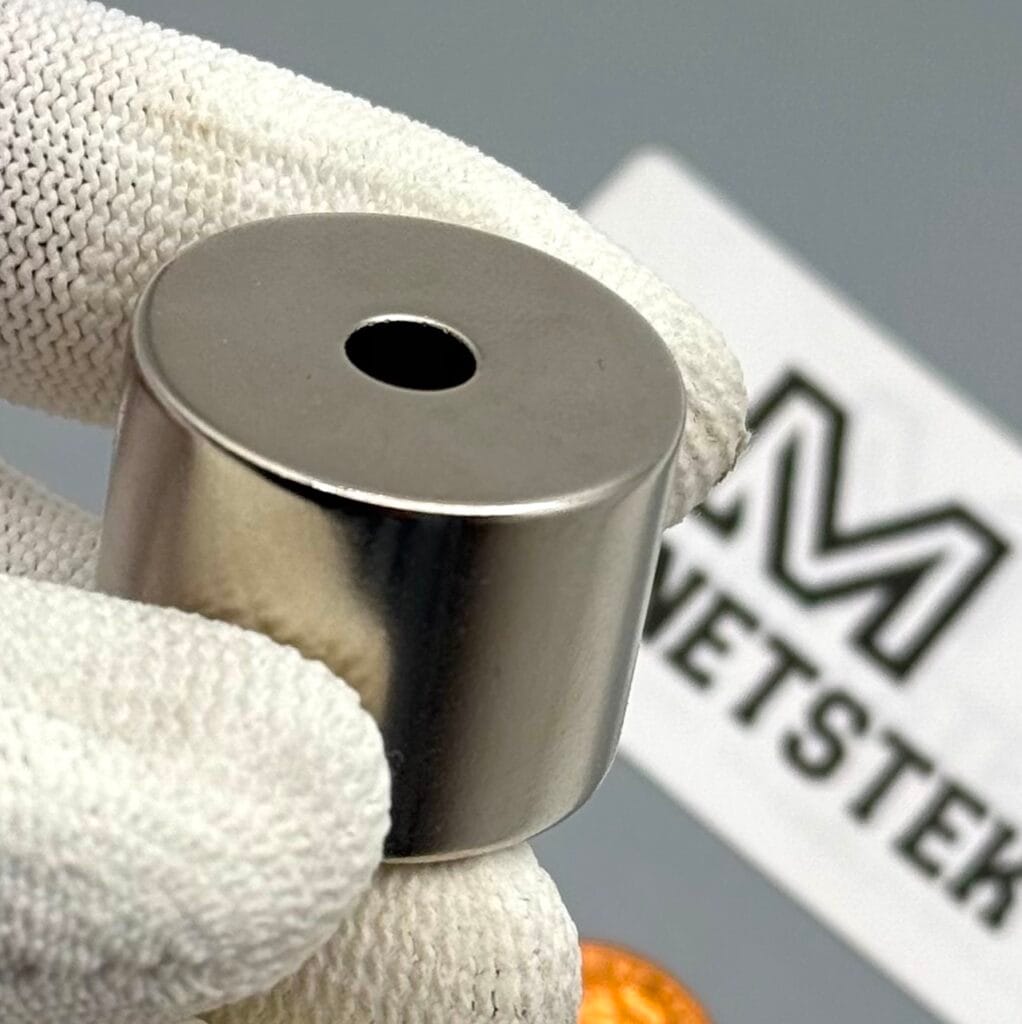

What Is a 25mm Diametrically Magnetized NdFeB Magnet Ring—And Why Should You Care?
Unlike the more common axially magnetized magnets (where the north and south poles are on the flat faces), a diametrically magnetized magnet has poles on its curved sides—north on one side of the diameter and south on the opposite. This configuration enables rotational motion sensing, torque transfer, and stable magnetic fields in circular paths, making them ideal for motor designs, magnetic couplings, and more.
And when we talk about 25mm outer diameter, we’re in the sweet spot for small- to mid-sized assemblies—perfect for compact electric drives, industrial sensors, and scientific equipment. These magnets pack a powerful punch while keeping dimensions manageable for tight designs.
Key Benefits of 25mm Diametrically Magnetized NdFeB Rings
✅ High Magnetic Strength
Made from NdFeB (Neodymium-Iron-Boron)—the most powerful magnetic material commercially available—these rings offer high magnetic energy density. Even a 25mm size can generate strong magnetic flux for efficient torque transfer.
✅ Ideal for Torque-Based Applications
Diametrical magnetization is a natural fit for applications involving rotary motion. The consistent flux pattern across the ring’s diameter allows smooth rotation and precise position feedback, making these magnets a favorite in motor encoders and magnetic coupling systems.
✅ Compact but Powerful
A 25mm outer diameter offers an ideal balance between strength and size. The magnet is large enough to provide a strong field yet compact enough to integrate into precision mechanical systems.
Typical Applications in Industry
If you’re in R&D, automation, or motion control, chances are you’ve seen (or used) diametrically magnetized rings. Here are common use cases:
- Brushless DC motors and stepper motors
- Magnetic rotary encoders and Hall effect sensors
- Coupling devices for sealed or non-contact torque transfer
- Robotics, lab automation, and aerospace assemblies
These magnets are particularly useful where axial flux leakage must be minimized, or where torque needs to be smooth and stable—think MRI calibration equipment or magnetic shaft sensors.
Customization Options at MagnetsTek
At MagnetsTek, we manufacture custom diametrically magnetized ring magnets tailored to your exact specs. We support:
- 🔧 Inner/outer diameters and thickness adjustments (e.g., 25×15×5 mm, or other specs)
- 🎯 Tight tolerance control for critical fits
- 🧪 Variety of coatings: NiCuNi (standard), black epoxy, zinc, Parylene, etc.
- 🧲 Assembly-ready configurations for integration into housings or motor stacks
- 📦 Low MOQ and prototyping support—production as fast as 7 days
We’ve served more than 60 global universities and research institutions (like MIT and UOB) and helped industrial clients in Europe, North America, Japan, and Australia bring their magnetic innovations to life.
How to Choose the Right Supplier for Diametrically Magnetized Rings
Before placing your next order, ask these key questions:
- What grade of NdFeB is being used? (We offer N35–N52, including high-temp grades.)
- Can the supplier ensure precision magnetization direction? (Misalignment ruins function.)
- Is coating corrosion-resistant for your application? (Especially important for outdoor or humid environments.)
- How fast is their lead time? (MagnetsTek offers 7-day turnaround for custom NdFeB magnets.)
- Do they ship globally and handle custom clearances? (We do.)
Final Thoughts: Why These Magnets Are Worth Considering
When engineering demands high torque in a tight space, 25mm diametrically magnetized NdFeB ring magnets deliver unmatched performance. Their radial flux path, strong magnetization, and flexible size options make them indispensable in the toolkit of engineers and product developers.
Need a reliable supply with expert advice on magnet integration? At MagnetsTek, we not only manufacture but help optimize your design for cost, strength, and efficiency.
👉 Ready to Source Custom Ring Magnets?
Reach out to us directly at [email protected], or visit www.magnetstek.com to request a quote or sample. Let’s bring your magnetic concept to reality—fast.
🔍 Related FAQs
Q: What does diametrically magnetized mean in ring magnets?
A: It means the magnetic poles are on the sides (not faces) of the ring—north and south across the diameter.
Q: What are diametrically magnetized magnets used for?
A: Mostly for torque transfer, sensors, motor applications, and magnetic couplings.
Q: Can I customize the size of a diametrically magnetized NdFeB magnet?
A: Yes! MagnetsTek specializes in custom sizes, shapes, coatings, and magnetization orientations.
