NdFeB (Neodymium-Iron-Boron) permanent magnets, often referred to as the “king of magnets,” have garnered significant attention since their introduction due to their exceptional magnetic properties. With the growing market demand, the production process and performance of NdFeB magnets have continuously evolved and improved. The magnetic properties of materials like NdFeB are typically measured using key indicators such as residual magnetism (Br), coercivity (Hcb and Hcj), and maximum energy product ((BH)max). This article delves into the factors that determine these performance metrics, explores technological methods to enhance magnetic material performance, and discusses how to prevent performance degradation during use.
1. Key Performance Indicators of NdFeB Magnets
1.1 Residual Magnetism (Br)
Residual magnetism (Br) is the magnetic induction that a magnet exhibits after being magnetized to technical saturation in a closed-loop environment and then having the external magnetic field removed. If we compare a magnet to a sponge, residual magnetism is akin to the amount of water the sponge holds when it is fully saturated. The higher the Br, the stronger the magnet’s performance.
1.2 Coercivity (Hcb) and Intrinsic Coercivity (Hcj)
Coercivity refers to the magnetic field strength required to reduce the magnet’s magnetic induction to zero when subjected to a reverse demagnetizing field. However, at this point, the magnet’s magnetic polarization is not zero, as the external magnetic field cancels out the internal magnetic field of the magnet. Intrinsic coercivity (Hcj), on the other hand, is the reverse magnetic field strength required to reduce the magnet’s internal magnetic polarization to zero. The relationship between Hcb and Hcj is crucial for determining the stability and resistance of the magnet to demagnetization under various conditions.
1.3 Maximum Energy Product ((BH)max)
The maximum energy product represents the maximum energy density in the space established by the two magnetic poles of the magnet, which is the product of B and H. The higher the (BH)max value, the better the magnet’s overall performance. This value is a direct indicator of the magnet’s efficiency and strength.
2. Factors Determining the Performance of NdFeB Magnets
2.1 Raw Material Composition
The composition of raw materials plays a critical role in determining the inherent magnetic properties of NdFeB magnets. As the name suggests, NdFeB magnets are composed of rare earth metal neodymium (Nd), pure iron (Fe), and boron (B) through a powder metallurgy process. To further enhance the magnetic performance of NdFeB, additional elements can be introduced into the ternary Nd-Fe-B material system. However, the impact of adding elements can be dual-sided, potentially improving or compromising the magnetic properties. Therefore, the selection of additional elements should be based on the specific performance requirements for the intended application of the NdFeB magnet.
2.1.1 Effect of Neodymium (Nd)
Neodymium is the primary rare earth element in NdFeB magnets, contributing significantly to the magnet’s overall magnetic strength. However, it is also the most expensive component, which necessitates careful balancing in the composition to achieve both performance and cost-effectiveness. The proportion of neodymium directly influences the magnet’s Br and (BH)max values.
2.1.2 Role of Iron (Fe)
Iron serves as the primary magnetic material in NdFeB magnets, providing the necessary magnetic permeability. However, excessive iron can lead to the precipitation of α-Fe phase, which detrimentally affects the magnetic properties, particularly coercivity.
2.1.3 Influence of Boron (B)
Boron plays a stabilizing role in the crystal structure, enhancing the magnet’s hardness and temperature resistance. However, the amount of boron needs to be optimized, as excessive boron can reduce the magnet’s residual magnetism.
2.1.4 Adding Other Elements
Elements such as dysprosium (Dy), terbium (Tb), cobalt (Co), and aluminum (Al) are sometimes added to improve specific magnetic properties. For example, dysprosium and terbium are used to enhance coercivity, particularly at higher temperatures, while cobalt can improve thermal stability. However, the addition of these elements increases production costs and may reduce Br, necessitating a careful balance based on the magnet’s application.
2.2 Production Process
The production process is crucial for realizing the potential magnetic properties of the raw materials. Various advanced techniques and methods have been developed to optimize the performance of NdFeB magnets, focusing on controlling the microstructure and reducing the negative impact of undesirable phases.
2.2.1 Sintering Process
The sintering process is vital in determining the final density and microstructure of NdFeB magnets. A well-controlled sintering process can minimize the presence of the α-Fe phase, which is non-magnetic and deteriorates the magnet’s performance. The introduction of sintering aids and optimized sintering temperatures can significantly enhance the magnet’s coercivity and overall performance.
2.2.2 Rapid Quenching
Rapid quenching, also known as melt spinning, is a process that involves cooling the molten alloy at a very high rate to produce a thin ribbon of NdFeB material with a fine microstructure. This process effectively eliminates the α-Fe phase, enhances oxidation resistance, and reduces grain size, thereby significantly improving coercivity.
2.2.3 Addition of Anti-Oxidants
To prevent the oxidation of NdFeB magnets during production, anti-oxidants are added. This not only reduces the oxygen content in the final magnet but also allows for finer grinding of the magnetic powder, which is beneficial for improving coercivity. Furthermore, the reduced oxygen content also enhances the intrinsic coercivity of the magnet by approximately 160 kA/m compared to traditional processes.
2.2.4 Lubricants in the Milling Process
The use of lubricants during the milling process reduces friction between the magnetic powders, improving their flowability and orientation. This enhancement in powder orientation directly contributes to an increase in residual magnetism.
2.3 Environmental Factors
2.3.1 Temperature
Temperature has a significant impact on the performance of NdFeB magnets. Each magnet has a maximum operating temperature beyond which its magnetic properties begin to degrade. Exceeding this temperature can result in irreversible demagnetization, especially if the temperature exceeds the Curie point, where the magnet’s intrinsic magnetic properties are permanently lost.
2.3.2 Humidity and Corrosion

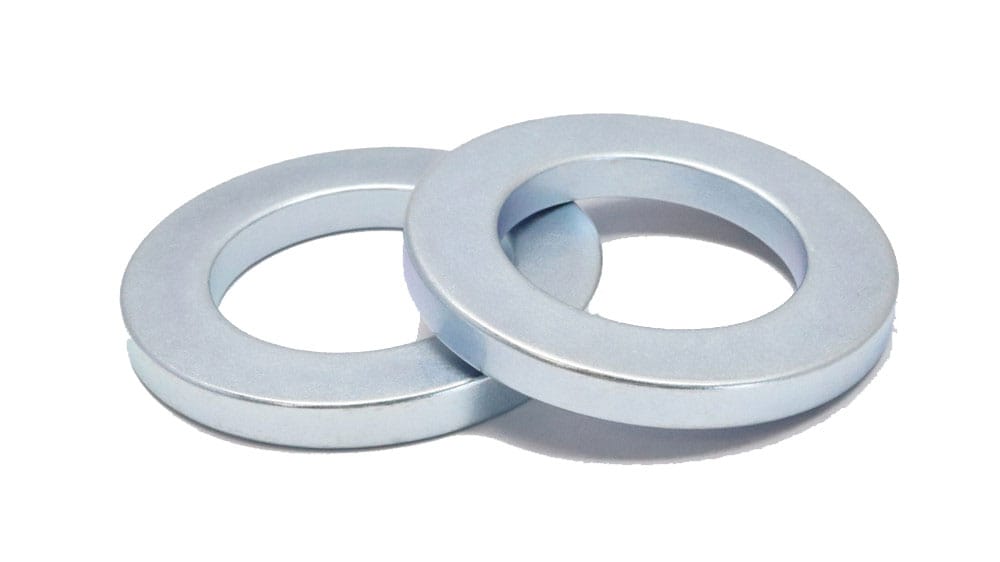

NdFeB magnets are prone to corrosion, especially in humid environments. Corrosion can cause the magnet to degrade, leading to a reduction in performance over time. Protective coatings such as nickel, zinc, or epoxy are often applied to the magnet’s surface to prevent corrosion and extend the magnet’s lifespan.
2.3.3 Magnetic Field Interference
Exposure to external magnetic fields can influence the performance of NdFeB magnets. Strong external fields can lead to partial demagnetization, reducing the magnet’s overall efficiency. Shielding or proper placement within devices is essential to maintain optimal performance.
3. Enhancing the Performance of NdFeB Magnets
3.1 Optimizing Composition
One of the most effective ways to enhance the performance of NdFeB magnets is by optimizing the composition of the alloy. Research and experimentation with different ratios of neodymium, iron, and boron, as well as the addition of other elements like dysprosium and terbium, can yield significant improvements in specific magnetic properties.
3.2 Advanced Sintering Techniques
Innovative sintering techniques, such as hot isostatic pressing (HIP) and spark plasma sintering (SPS), have been developed to produce NdFeB magnets with superior density and microstructural uniformity. These methods can significantly enhance the magnet’s coercivity and reduce the presence of detrimental phases like α-Fe.
3.3 Grain Boundary Refinement
Grain boundary refinement is a critical process for improving the coercivity of NdFeB magnets. By refining the grain boundaries through the addition of elements like gallium (Ga) or copper (Cu), the magnets can achieve higher coercivity while maintaining high residual magnetism. This process involves the precise control of microstructural features to enhance the magnetic properties at the grain boundaries.
3.4 Surface Treatment and Coating
Surface treatments and coatings are essential for improving the durability and corrosion resistance of NdFeB magnets. Coatings like nickel, epoxy, or phosphate provide a protective barrier against environmental factors such as humidity and chemicals, thus preventing performance degradation over time.
3.5 Magnetic Annealing
Magnetic annealing is a heat treatment process that aligns the magnetic domains within the NdFeB magnet, thereby enhancing its residual magnetism and coercivity. This process involves heating the magnet to a specific temperature and then cooling it under the influence of a magnetic field to achieve the desired alignment of magnetic domains.
3.6 Incorporation of Nanotechnology
The incorporation of nanotechnology in the production of NdFeB magnets has opened up new possibilities for enhancing their performance. By manipulating the magnetic properties at the nanoscale, researchers can create magnets with unprecedented levels of coercivity and energy density. Nanocomposites and nanoparticle additives are among the emerging technologies being explored to push the limits of NdFeB magnet performance.
4. Preventing Performance Degradation in NdFeB Magnets
4.1 Proper Handling and Storage
To prevent performance degradation, it is crucial to handle and store NdFeB magnets properly. Avoiding exposure to high temperatures, humidity, and corrosive environments is essential for maintaining the magnet’s integrity. Storage in a controlled environment with low humidity and stable temperatures can significantly extend the magnet’s lifespan.
4.2 Regular Maintenance and Inspection
For magnets used in industrial applications, regular maintenance and inspection are necessary to ensure optimal performance. Inspecting the magnet for signs of wear, corrosion, or demagnetization can help identify potential issues early on and prevent further degradation.
4.3 Application-Specific Design
Designing NdFeB magnets for specific applications can help mitigate performance degradation. By tailoring the magnet’s composition, size, and shape to the specific operating conditions, engineers can optimize the magnet’s performance and durability. For example, magnets used in high-temperature environments can be designed with higher coercivity to resist demagnetization.
4.4 Use of Protective Coatings
Applying protective coatings to NdFeB magnets is a common method to prevent corrosion and extend their service life. Coatings such as nickel, zinc, or epoxy provide a barrier against moisture and chemicals, reducing the risk of performance degradation. In applications where corrosion is a significant concern, additional layers of coating or more advanced protective materials may be necessary.
4.5 Shielding from External Magnetic Fields
To protect NdFeB magnets from the effects of external magnetic fields, shielding can be employed. Magnetic shielding materials, such as mu-metal or other high-permeability alloys, can be used to encase the magnet, preventing external fields from causing partial demagnetization or interference with the magnet’s performance.
5. Conclusion
The performance of NdFeB magnets is determined by a complex interplay of factors, including raw material composition, production processes, and environmental conditions. By understanding and optimizing these factors, it is possible to enhance the magnetic properties of NdFeB magnets, making them suitable for a wide range of high-performance applications. Furthermore, proper handling, storage, and protective measures can prevent performance degradation, ensuring that NdFeB magnets maintain their superior magnetic properties over time.
Advances in materials science and manufacturing technologies continue to push the boundaries of NdFeB magnet performance. With ongoing research and development, the potential for even stronger and more resilient magnets is within reach, promising to meet the ever-growing demands of modern technology and industry.
Reference:
- Zhang Shoumin. Progress in the Research of NdFeB Rare Earth Permanent Magnetic Materials [J]. Rare Earths, 2001, 22(1): 45-49.
