Introduction
Wireless charging, also known as inductive charging, has changed the way we think about powering devices. This technology allows electronic devices to charge without being physically connected to a power source through a cable. Behind this seemingly magical process is a scientific mechanism rooted in the principles of electromagnetism, made possible through the use of specially designed magnets and coils. These wireless charging magnets are crucial in enabling the transfer of power, making the charging process more efficient, convenient, and reliable. This article explores the working principles of wireless charging magnets, examines the materials used, and highlights the technology’s diverse applications across industries.
The Science Behind Wireless Charging Magnets
Electromagnetic Induction
At the heart of wireless charging technology is the principle of electromagnetic induction, first discovered by Michael Faraday in the 19th century. Faraday found that moving a conductor through a magnetic field generates an electric current within that conductor. This concept laid the foundation for wireless energy transfer, which is now applied in wireless charging. When a charging pad, or transmitter, generates a magnetic field, it induces an electric current in a compatible receiver coil within the device.

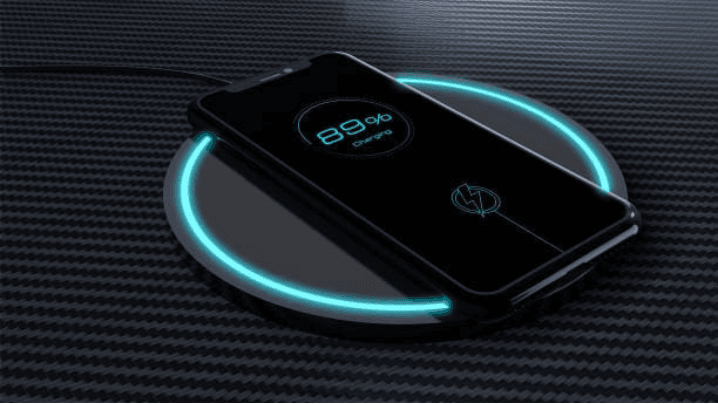

To initiate the wireless charging process, the charging pad is connected to a power source, allowing electrical current to flow through the coil within the pad. As the current moves through the coil, it creates an alternating magnetic field around the coil, effectively acting as a mini generator of electromagnetic waves. This magnetic field radiates out from the coil in all directions, creating the possibility for inductive coupling with nearby devices.
Magnetic Resonance
Beyond standard induction, some wireless charging systems utilize a method called magnetic resonance to improve efficiency and range. Unlike basic magnetic induction, which requires close proximity, magnetic resonance allows for greater flexibility in distance and orientation between the charging pad and the device being charged. In this method, both the transmitter coil in the charging pad and the receiver coil in the device are tuned to resonate at the same frequency. This synchronization creates a more efficient energy transfer, allowing power to move from the charger to the device across a slightly larger gap or through certain materials, such as a plastic or glass casing.
Magnet Design and Configuration
Magnets used in wireless charging are typically positioned around or within the coils to optimize the magnetic flux generated by the coils. These magnets ensure that the generated electromagnetic field remains focused and directed toward the receiving coil, which enhances efficiency by minimizing the amount of stray magnetic flux that could otherwise dissipate. The type, strength, and configuration of magnets used in wireless charging systems vary depending on the application, such as whether the charging system is designed for a small wearable or a larger device like an electric vehicle.
Types of Wireless Charging Magnets
The selection of magnets for wireless charging is not a one-size-fits-all decision; different materials and configurations offer unique benefits and limitations. Below are the primary types of magnets commonly used in wireless charging systems.
Ferrite Core Magnets
Ferrite magnets are the most commonly used magnets in wireless charging applications. Ferrites are ceramic compounds composed of iron oxides combined with other elements, such as barium, manganese, or nickel. Ferrite magnets are widely chosen because of their high magnetic permeability and their low electrical conductivity. High permeability allows ferrite magnets to efficiently channel and contain magnetic flux, which enhances the magnetic field strength and improves inductive coupling.
Ferrite core magnets are especially valuable in high-frequency applications, like those involved in wireless charging, as they help mitigate energy losses. Additionally, the low electrical conductivity of ferrite magnetss reduces the formation of eddy currents, which are loops of electric current induced within the material. By minimizing these currents, ferrite magnets enhance energy efficiency and minimize heat generation, an essential factor in charging systems designed for compact electronics.
Neodymium Magnets
Neodymium magnets, often regarded as the most powerful type of commercially available magnets, are also employed in some wireless charging systems. These magnets are an alloy of neodymium, iron, and boron, giving them exceptional strength for their size. While less common than ferrite magnets, neodymium magnets can be beneficial in systems where a very strong magnetic field is required in a compact space, such as in certain high-power wireless chargers. However, neodymium magnets are more expensive and tend to have lower resistance to temperature fluctuations, which limits their widespread application in wireless charging technology.
Materials Used in Wireless Charging Coils
Apart from magnets, the coil materials used in wireless charging are essential for optimizing efficiency and ensuring reliable power transfer. The selection of materials impacts factors like electrical resistance, heat generation, and the physical durability of the coil.
Copper Coils
Copper is the preferred material for coils in most wireless charging systems due to its excellent electrical conductivity. Low resistance means that more current can pass through the coil with minimal energy loss, making copper highly efficient for inductive charging. Additionally, copper’s thermal conductivity helps manage heat generation, which is critical in consumer electronics where excessive heat can affect device performance.
Copper coils are typically wound in planar or spiral configurations and paired with ferrite cores to concentrate the magnetic flux generated during charging. Some wireless chargers for high-power applications use litz wire, a form of copper wiring made of numerous thin strands of wire, each individually insulated. Litz wire reduces the skin effect, where alternating current tends to concentrate near the surface of the conductor, leading to energy losses at high frequencies.
Aluminum Coils
In some instances, aluminum is used as an alternative to copper, particularly in low-cost or lightweight charging solutions. Although aluminum has lower electrical conductivity than copper, it is considerably lighter, making it suitable for portable devices where weight is a concern. Aluminum is also more affordable, so it may be used in budget-friendly wireless chargers where small reductions in efficiency can be tolerated.
Applications of Wireless Charging Magnets
Wireless charging technology has found a broad range of applications across industries, from consumer electronics to automotive and even medical devices. As the demand for cable-free solutions grows, so too does the range of potential applications for wireless charging magnets.
Consumer Electronics

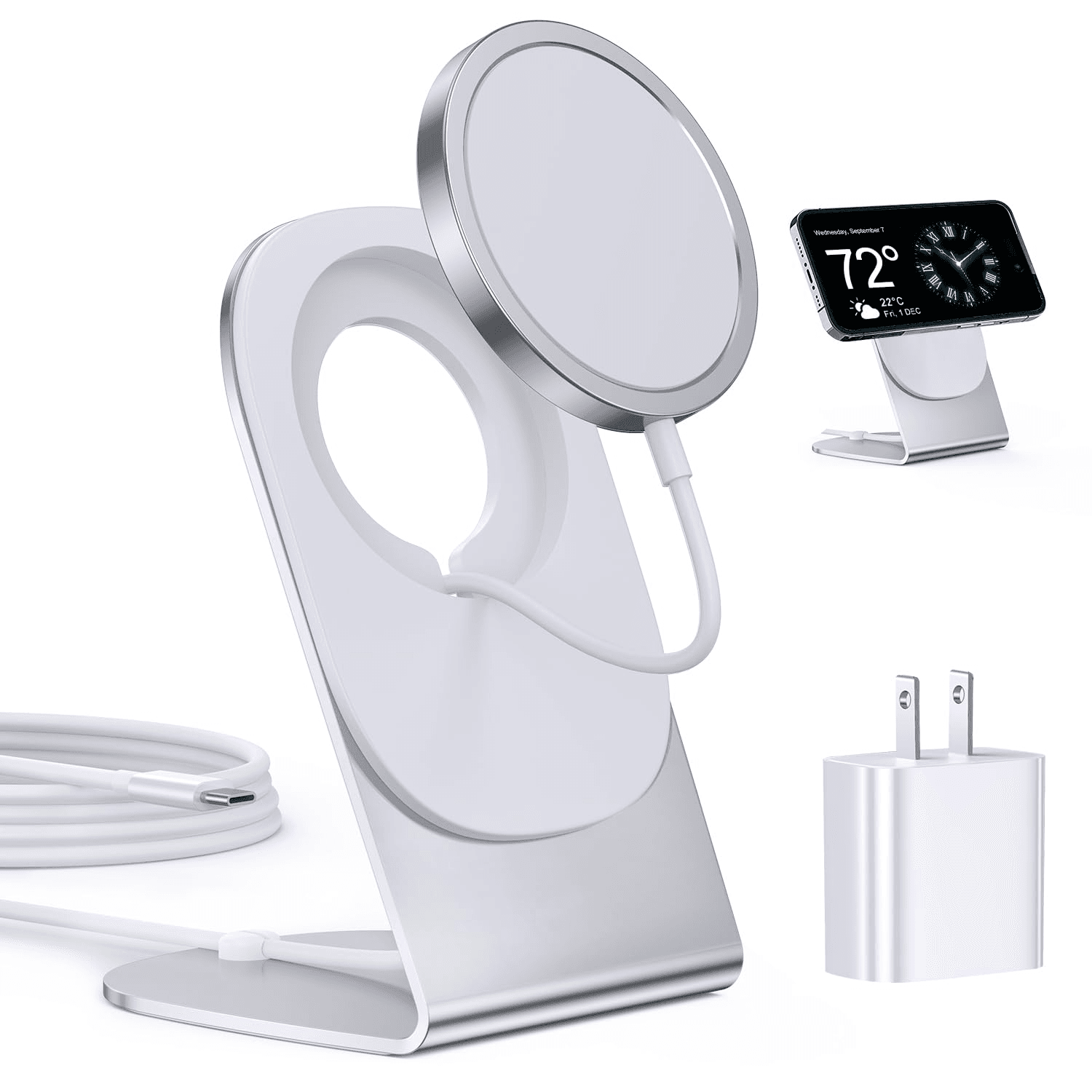

Wireless charging is perhaps most recognized in the consumer electronics sector, where it has become a popular feature in smartphones, tablets, and wearables. With the advent of Qi (pronounced “chee”) wireless charging standard, device manufacturers have adopted a universal standard, allowing compatibility across brands. Consumers can now use a single wireless charging pad to charge various devices, enhancing convenience and reducing clutter. Wireless charging is particularly beneficial for wearables, such as smartwatches and fitness trackers, where charging ports are prone to damage from repeated use.
Electric Vehicles (EVs)
The automotive industry has recognized the potential of wireless charging, particularly for electric vehicles (EVs). Wireless EV charging pads utilize magnetic resonance to transfer power from a ground-mounted charging pad to a receiver in the vehicle, enabling drivers to recharge their vehicles without plugging them in. This convenience is particularly valuable in residential settings where charging stations can be installed in garages or driveways, allowing for seamless charging whenever the vehicle is parked.
Wireless charging in the automotive industry is not limited to EV batteries. Some manufacturers have also introduced wireless charging pads for smartphones within car interiors, enabling drivers and passengers to charge their devices without needing additional accessories or cables.
Medical Devices
The healthcare industry has adopted wireless charging technology to power medical devices, especially in applications where traditional charging solutions may pose risks or inconvenience. For example, wireless charging is used in implanted medical devices like pacemakers and cochlear implants, where the absence of charging cables reduces the risk of infection. By eliminating the need for invasive procedures to recharge devices, wireless charging enhances patient safety and reduces healthcare costs.
In wearable medical devices, such as glucose monitors or hearing aids, wireless charging allows for a more streamlined user experience. These devices often need to be compact, waterproof, and comfortable for everyday wear, making wireless charging an ideal choice to avoid the limitations and wear-and-tear associated with traditional charging ports.
Industrial Applications
Industrial settings also benefit from wireless charging, especially for equipment that operates in challenging environments or requires continuous operation. For instance, robots and drones equipped with wireless charging capabilities can recharge automatically at designated charging stations without human intervention. In warehouses, Automated Guided Vehicles (AGVs) equipped with wireless charging systems can operate around the clock, stopping only briefly to recharge without needing to be removed from service for manual charging.
Wireless charging is also valuable in environments where traditional charging connectors may be susceptible to damage from dust, moisture, or chemicals. In these settings, wireless charging offers a more reliable solution by eliminating the need for exposed connectors, thereby enhancing the longevity and resilience of industrial equipment.
Advantages and Challenges of Wireless Charging Magnets
While wireless charging magnets offer significant benefits, there are also technical challenges to address to optimize performance and reliability.
Advantages
- Enhanced Durability: Since wireless charging involves no physical connectors, it reduces wear on charging ports and improves device longevity, which is especially valuable in rugged applications.
- Increased Convenience: Eliminating the need for cables and connectors simplifies charging, especially in consumer electronics, where users can charge devices by simply placing them on a pad.
- Safety in Medical Devices: Wireless charging offers a safer alternative for implanted and wearable medical devices, reducing the risk of infection by eliminating open ports.
Challenges
- Limited Efficiency Over Distance: Wireless charging efficiency decreases as the distance between the charging pad and the device increases, which can be a limitation in certain applications.
- Heat Management: The process of inductive charging generates heat, which can negatively impact device performance or longevity, particularly in compact electronics.
- Precise Alignment Requirements: For optimal charging efficiency, the device and charging pad need to be closely aligned, which can be challenging in automotive or industrial applications.
Future of Wireless Charging Magnet Technology
The future of wireless charging magnets looks promising as research advances continue to drive improvements in efficiency, range, and power capabilities. Emerging materials with higher magnetic permeability and lower resistance are expected to enhance energy transfer, while advancements in magnetic resonance could allow for more flexible charging options.
Developments in ultra-wideband wireless power transmission could enable the use of wireless charging for larger devices and vehicles, potentially making it possible to charge devices across greater distances and even through walls or other obstacles. Furthermore, the ongoing miniaturization of magnets and coils is paving the way for ultra-compact wireless chargers suitable for tiny wearable devices.
Conclusion
Wireless charging magnets have fundamentally changed how we interact with technology, offering a cleaner, more efficient alternative to traditional wired charging. From consumer electronics and electric vehicles to medical and industrial applications, the technology continues to evolve, finding new ways to enhance convenience and performance. While challenges remain, particularly in the areas of efficiency and alignment, ongoing innovation promises to make wireless charging an even more versatile and reliable solution across a broad spectrum of applications. As the world moves toward a more connected and wireless future, wireless charging magnets will undoubtedly play a central role in shaping this landscape.
