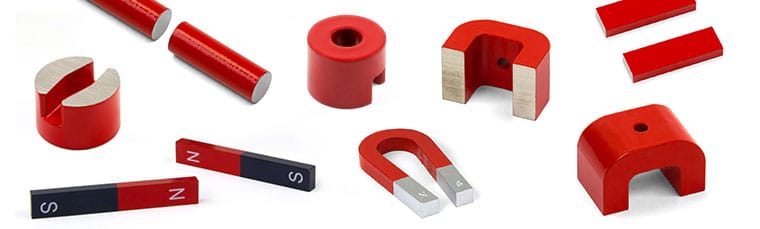

Alnico magnets, a unique group of magnets made from aluminum (Al), nickel (Ni), and cobalt (Co), are known for their excellent temperature stability, high magnetic strength, and durability. Since their invention in the 1930s, these magnets have been widely used in various industries due to their robust magnetic properties. Despite newer magnetic materials being developed, such as rare-earth magnets, alnico magnets maintain a strong presence in many applications.
In this article, we’ll delve into the different types of alnico magnets, their characteristics, manufacturing processes, and the wide range of uses they offer across different industries. We’ll also explore the benefits and limitations of these magnets, helping you better understand why alnico magnets continue to be valuable today.
Understanding Alnico Magnets
Before exploring the types and uses of alnico magnets, it’s essential to understand what sets them apart from other magnets. Alnico magnets are composed primarily of aluminum, nickel, and cobalt, along with traces of other elements such as copper and titanium. The key features that make alnico magnets stand out include their ability to retain magnetism in high-temperature environments and their resistance to demagnetization.
Alnico magnets are available in both isotropic (non-oriented) and anisotropic (oriented) forms. Isotropic alnico magnets can be magnetized in any direction, whereas anisotropic magnets have a preferred direction of magnetization, resulting in higher magnetic strength. Their properties make alnico magnets versatile for various applications.
Types of Alnico Magnets
There are several types of alnico magnets, each offering specific characteristics suited for different applications. The primary classifications include Alnico 2, Alnico 3, Alnico 5, Alnico 8, and Alnico 9. Below is an overview of the most common types.
1. Alnico 2
Alnico 2 is known for its lower magnetic strength and relatively higher flexibility compared to other types. It is often used in situations where a lower coercivity magnet is needed. This type is ideal for musical instrument pickups, particularly in vintage-style electric guitars, as it provides a warm and soft tone. The moderate magnetic properties also make it suitable for sensitive measuring devices and some types of sensors.
Key Characteristics:
- Moderate magnetic strength
- High flexibility
- Suitable for sensitive applications and musical instruments
2. Alnico 3
Alnico 3 contains the least amount of cobalt, resulting in weaker magnetic properties. However, it has very little coercive force, making it easy to magnetize and demagnetize. Like Alnico 2, this type is commonly used in musical instrument pickups but offers a smoother and more vintage sound. Additionally, Alnico 3 magnets are used in relays and some precision instruments where low-strength magnets are essential.
Key Characteristics:
- Weakest magnetic strength of the alnico family
- Easy to magnetize and demagnetize
- Preferred in vintage musical equipment and precision instruments
3. Alnico 5
Alnico 5 is the most widely used and popular type of alnico magnet. It offers a good balance of strength and stability, making it ideal for a broad range of industrial and consumer applications. Alnico 5 magnets are often found in electric motors, sensors, loudspeakers, and generators. They also have excellent temperature stability, able to function effectively in high-heat environments without losing their magnetism.
Key Characteristics:
- Strong magnetic properties
- Excellent temperature stability
- Used in motors, generators, sensors, and audio equipment
4. Alnico 8
Alnico 8 has a much higher coercive force than Alnico 5, making it more resistant to demagnetization. It also has a higher energy product, providing more magnetic power. This type is commonly used in more demanding industrial applications, such as those involving heavy machinery and aerospace systems. Alnico 8’s resistance to temperature variation also makes it ideal for harsh environments.
Key Characteristics:
- High coercive force and magnetic power
- Resistant to demagnetization
- Suitable for industrial and aerospace applications
5. Alnico 9
Alnico 9 is a more specialized variant, offering the highest magnetic strength among all alnico types. It is used in highly demanding applications where maximum performance is required. However, due to its cost and difficulty to manufacture, it is used less frequently than other types.
Key Characteristics:
- Strongest magnetic strength among alnico magnets
- Primarily used in specialized industrial applications
Manufacturing Processes for Alnico Magnets
Alnico magnets are manufactured using either the casting or sintering process. Each method yields different properties and suitability for specific applications.
1. Casting
The casting process involves melting down the raw materials (aluminum, nickel, cobalt, and other elements) and pouring the molten metal into a mold. The mold determines the shape of the magnet. After cooling and solidifying, the magnet is heat-treated and often ground to achieve the desired dimensions and shape.
Cast alnico magnets generally have higher energy products and are used in applications requiring higher magnetic strength. Cast magnets also come in larger sizes, making them ideal for heavy-duty applications like motors and generators.
2. Sintering
In the sintering process, powdered raw materials are compacted under high pressure and then heated to a temperature just below their melting point. The particles bond together through this process, forming a solid material. Sintered alnico magnets typically have better mechanical properties than cast magnets, although they usually exhibit slightly lower magnetic strength.
Sintered alnico magnets are preferred for applications requiring smaller magnets or when higher mechanical strength is necessary. Examples include smaller sensors and precision instruments.
Advantages of Alnico Magnets
Alnico magnets offer several benefits that make them highly sought after in a variety of industries. Here are some of the key advantages:
1. High Temperature Stability
One of the most significant advantages of alnico magnets is their ability to maintain magnetic properties at high temperatures. Alnico magnets can withstand temperatures of up to 500°C (930°F) without losing their magnetism, making them ideal for high-heat applications such as engines and turbines.
2. Resistance to Demagnetization
Alnico magnets have high resistance to demagnetization, meaning they can retain their magnetism even in challenging environments. This property is especially important in applications that experience high external magnetic fields, such as electrical motors.
3. Durability
Alnico magnets are known for their long-term durability, able to perform consistently over extended periods without significant loss of performance. Their robust construction ensures they can handle the wear and tear of industrial environments.
4. Customizability
Alnico magnets can be manufactured in a wide range of shapes and sizes. Whether cast or sintered, they can be tailored to meet the specific needs of different applications. This flexibility makes them highly adaptable to a variety of industries.
Limitations of Alnico Magnets
Despite their many advantages, alnico magnets do have some limitations that may influence their suitability for certain applications.
1. Relatively Lower Magnetic Strength
Compared to newer magnetic materials like neodymium or samarium-cobalt, alnico magnets have lower maximum energy products. This limits their use in applications requiring very high magnetic strength. For example, neodymium magnets are often preferred in modern electronics and small devices because of their superior strength-to-size ratio.
2. Brittleness
Alnico magnets, especially cast magnets, are relatively brittle and can break or chip if subjected to excessive mechanical stress. This brittleness may limit their use in situations where the magnets will experience heavy physical impacts.
3. Cost
While alnico magnets are more cost-effective than rare-earth magnets like neodymium, they are more expensive than ceramic magnets. This can make them less attractive for applications where the highest strength-to-cost ratio is not required.
Applications of Alnico Magnets
Alnico magnets are widely used across various industries due to their robust magnetic properties and temperature stability. Below are some of the key areas where these magnets play a critical role.
1. Electric Motors and Generators
Alnico magnets are commonly used in electric motors and generators, where their ability to function at high temperatures without losing magnetism is crucial. They are particularly popular in large industrial motors, wind turbines, and other heavy-duty applications that operate in extreme environments.
2. Musical Instruments
In the world of music, alnico magnets are famous for their use in guitar pickups. Alnico magnets, particularly Alnico 2 and 3, are renowned for producing warm, vintage tones that are prized by musicians. They are also found in speakers and amplifiers, providing excellent sound quality.
3. Sensors and Measuring Devices
Due to their stable magnetic properties and resistance to demagnetization, alnico magnets are frequently used in sensors, compasses, and measuring devices. Their reliability makes them suitable for sensitive equipment in fields like aviation and navigation.
4. Loudspeakers and Audio Equipment
Alnico magnets were the standard in loudspeakers before the development of more modern materials like ferrite and neodymium. While newer materials have taken over most of the market, some high-end audio manufacturers still prefer alnico magnets for their warmth and rich sound quality.
5. Aerospace and Military
In the aerospace and military industries, alnico magnets are used in applications requiring high temperature resistance, such as jet engines and radar equipment. Their durability and stable magnetic properties make them ideal for critical components that must operate reliably in extreme conditions.
6. Automotive Industry
Alnico magnets are also employed in various automotive applications, such as sensors, speedometers, and electric motors. Their ability to perform well in high-heat environments makes them well-suited for use in engines and other temperature-sensitive components.
7. Magnetic Separators
Alnico magnets are used in magnetic separators to remove ferrous materials from non-ferrous substances. These devices are employed in recycling plants, food production, and various industrial processes where contamination must be minimized.
Conclusion
Alnico magnets may not be the strongest magnets available today, but their unique combination of temperature stability, resistance to demagnetization, and durability ensures they remain valuable in many applications. Whether in electric motors, musical instruments, or aerospace components, alnico magnets continue to offer reliable performance where other types may falter.
With various types such as Alnico 2, 3, 5, 8, and 9, each suited to specific needs, these magnets offer a versatile solution for industries ranging from electronics to heavy industry. While they face competition from more modern magnetic materials, their specific advantages ensure they will remain an essential part of the magnet world for years to come.
