Understanding Magnet Strength: How to Test a Magnet Using a Gaussmeter

Magnetism is a fundamental force in physics, deeply embedded in our daily lives through various applications and technologies. Whether you’re a hobbyist, a researcher, or a professional working with magnets, understanding how to measure magnet strength accurately is crucial. One of the most effective tools for this purpose is the Gaussmeter. This article will explore how to use a Gaussmeter to test a magnet, focusing on key concepts, procedures, and the distinction between different types of measurement devices. We will also touch on how this applies to custom neodymium magnets.

1. Introduction to Magnetism and Gaussmeters

Magnetism arises from the motion of electric charges, creating magnetic fields that exert forces on other magnets and magnetic materials. The strength of a magnet is quantified in terms of its magnetic field, measured in units such as Gauss (G) or Tesla (T). Gaussmeters are specialized instruments designed to measure this magnetic field strength accurately.

1.1 What is a Gaussmeter?

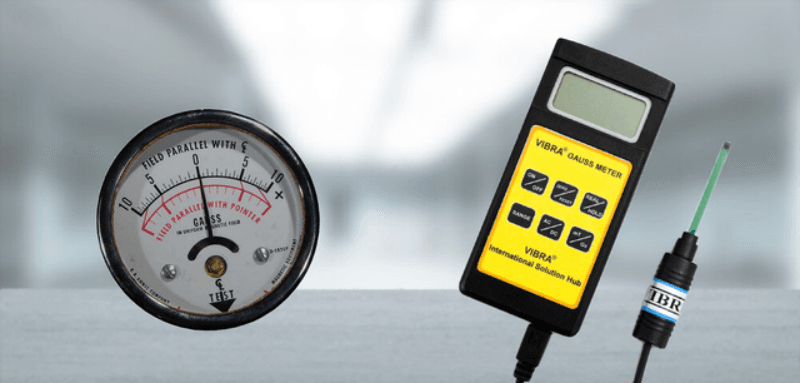

A Gaussmeter, also known as a magnetometer, is an instrument used to measure the strength and direction of magnetic fields. It works by detecting the magnetic flux density, which is the amount of magnetic flux passing through a unit area perpendicular to the field. Gaussmeters are essential for various applications, including quality control in manufacturing, scientific research, and the calibration of magnetic devices.

1.2 Types of Gaussmeters

Gaussmeters come in various types, each suited for specific applications:

• Hall Effect Gaussmeters: Utilize the Hall effect to measure magnetic fields. These are widely used for their accuracy and ease of use.
• Fluxgate Gaussmeters: Employ a fluxgate sensor to measure magnetic fields, known for their high sensitivity and precision.
• Search Coil Gaussmeters: Measure the changing magnetic fields, ideal for alternating current (AC) applications.

Each type of Gaussmeter has its advantages depending on the application, but Hall effect Gaussmeters are commonly used for their versatility and reliability.

2. How to Test a Magnet Using a Gaussmeter

Testing a magnet using a Gaussmeter involves several steps to ensure accurate and reliable measurements. This process can be broken down into preparation, measurement, and analysis.

2.1 Preparation

1. Calibration: Before using the Gaussmeter, ensure it is properly calibrated. Follow the manufacturer’s instructions to calibrate the instrument to account for any environmental or instrumental variations. Calibration ensures that your readings are accurate and reliable.

2.2 Safety Precautions:

• Ensure Safety: While magnets are generally safe, high-strength magnets can attract metal objects quickly and unexpectedly. Handle them carefully to avoid injuries.
• Check for Interference: Ensure that there are no other magnetic sources nearby that could affect the measurement. This includes electronic devices and metal objects.

2.3 Measuring Magnet Surface Magnetism

1. Positioning the Gaussmeter:

• Sensor Placement: Place the Gaussmeter’s probe or sensor near the surface of the magnet where you want to measure the magnetic field. The sensor should be perpendicular to the surface for accurate readings.
• Distance from Surface: Maintain a consistent distance from the magnet’s surface during measurement. Moving the sensor closer or farther can affect the reading, so be precise.

2. Conducting the Measurement:

• Static Field Measurement: For permanent magnets, measure the static magnetic field strength. Hold the sensor steady and record the reading on the Gaussmeter display. This will give you the Gauss value, which reflects the strength of the magnetic field at that point.
• Dynamic Field Measurement: If you are testing an electromagnet or a magnet with a varying field, take measurements at different points or over time to understand the variation in magnetic strength.

3. Recording and Analyzing Data:

• Data Logging: Some Gaussmeters come with data logging features that allow you to record and analyze measurements over time. Use these features to gather comprehensive data.
• Analysis: Compare your measurements with the expected values for the type of magnet you are testing. If the values are significantly different, it may indicate issues with the magnet or the measurement setup.

3. How to Measure Magnetic Field with a Gaussmeter

Measuring the magnetic field involves understanding the unit of measurement and interpreting the data accurately.

3.1 Understanding Gauss and Tesla

Magnetic field strength is commonly measured in Gauss (G) or Tesla (T). The Gauss is a smaller unit, where 1 Tesla equals 10,000 Gauss. For most practical purposes, especially in the context of small magnets, measurements are given in Gauss.

3.2 Interpreting Gaussmeter Readings

• High Gauss Values: A high Gauss value indicates a strong magnetic field. For instance, neodymium magnets, known for their high strength, typically have high Gauss values.
• Low Gauss Values: A low reading suggests a weaker magnetic field, which could be typical for smaller or less powerful magnets.

4. How Do You Measure the Magnetism of a Magnet?

To measure the magnetism of a magnet, you need to assess the magnetic field it produces. This is done by:

1. Using a Gaussmeter: As detailed earlier, a Gaussmeter provides a direct measurement of the magnetic field strength.
2. Understanding Magnet Specifications: Manufacturers often provide the magnetic field strength or Gauss value for their magnets. Compare your measurements with these specifications to verify the magnet’s performance.

5. How to Check the Gauss Value of a Magnet?

Checking the Gauss value involves:

1. Calibration: Ensure your Gaussmeter is calibrated before taking measurements.
2. Measurement: Position the Gaussmeter probe close to the magnet’s surface and record the reading.
3. Comparison: Compare the measured Gauss value with the manufacturer’s specifications or previous measurements to ensure consistency and accuracy.

6. What is the Difference Between a Magnetometer and a Gaussmeter?

While often used interchangeably, magnetometers and Gaussmeters have distinctions:

• Magnetometer: A general term for instruments measuring magnetic fields, including both Gaussmeters and magnetometers used for broader applications, including geological surveys and space research.
• Gaussmeter: A specific type of magnetometer designed to measure the magnetic field strength in Gauss or Tesla. Gaussmeters are typically used in industrial and laboratory settings for precise measurements.

7. Applications and Practical Tips

1. Custom Neodymium Magnets: When working with custom neodymium magnets, such as those available from Magnetstek, accurate measurement is crucial. Neodymium magnets are known for their high magnetic strength, and measuring their field strength with a Gaussmeter helps in verifying their performance and quality.

2. Quality Control: In manufacturing and quality control, Gaussmeters ensure that magnets meet specified strength requirements. Regular testing helps maintain consistency and reliability.

3. Research and Development: In R&D, precise measurement of magnetic fields aids in designing new magnetic materials and devices. Gaussmeters provide essential data for developing high-performance magnets and applications.

8. Conclusion

Understanding how to test a magnet using a Gaussmeter is vital for anyone involved with magnets, from industrial applications to scientific research. By following the correct procedures for calibration, measurement, and analysis, you can ensure accurate and reliable results. Whether you’re working with standard magnets or custom neodymium magnets from Magnetstek, a Gaussmeter provides the necessary precision to gauge magnet strength effectively.

With the knowledge of how to measure magnetism and check the Gauss value, you can confidently handle and test various magnetic materials, ensuring their performance meets your needs.
