Neodymium-iron-boron (NdFeB) magnets are known as the strongest commercial permanent magnets available today. Their unbeatable energy density, high remanence, and compact size have made them essential in electric motors, robotics, medical devices, consumer electronics, automation equipment, and countless precision systems.

But despite their extreme magnetic strength, NdFeB magnets are mechanically fragile. They are hard yet brittle—much like ceramics—and they can crack, chip, or shatter during manufacturing, handling, assembly, or even during actual operation if stresses aren’t properly controlled.

This article provides a deep engineering analysis of why NdFeB magnets crack, how mechanical stress causes hidden internal failures, what mistakes commonly occur during magnet handling and assembly, and how to prevent these issues through proper magnetic design and mechanical structure optimization.

The content is written specifically for Magnetstek customers—engineers, designers, and procurement teams—who rely on custom NdFeB magnets and custom neodymium magnetic assemblies for demanding applications.

1. Why NdFeB Magnets Are Strong Magnetically but Weak Mechanically

1.1 Ceramic-like microstructure

Although commonly grouped with metal products, NdFeB magnets are sintered ceramics, not ductile metals. Their microstructure contains:

• Nd₂Fe₁₄B grains
• Grain boundaries enriched with neodymium-rich phases
• High hardness but extremely low fracture toughness

This means they behave more like ceramic tiles than metallic blocks.

Mechanical characteristics

These values are far below those of ductile metals like stainless steel or aluminum.

Conclusion:
Even small impacts or uneven clamping forces can crack the magnet. Many failures are invisible initially and grow under stress over weeks or months.

2. Mechanical Stress During Assembly: The #1 Cause of NdFeB Cracking

For high-performance products, engineers often mount custom NdFeB magnets into housings, shafts, slots, pockets, or adhesive fixtures. This assembly process introduces mechanical stresses that can exceed the magnet’s limited tensile strength.

Below are the most common engineering mistakes.

2.1 Press-fit installation: A silent magnet killer

Press-fitting magnets into metal pockets or sleeves causes:

• Radial compressive stress
• Tensile stress at the edges
• Micro-cracking at corners

Even a 0.02–0.05 mm interference can generate enough stress to crack NdFeB at room temperature.

Why it happens

Metals deform elastically and then plastically under stress. Magnets do not.
A magnet cannot yield—it only cracks.

Solution

• Use a slip fit or 0.02–0.05 mm clearance
• Fill the gap with epoxy or structural adhesive
• Avoid any mechanical interference design

Magnetstek frequently recommends adhesive bonding over mechanical press-fits for custom neodymium magnets.

2.2 Uneven clamping pressure during assembly

During assembly, technicians may clamp a magnet into place using:

• Vises
• Mechanical fixtures
• Automated positioning tools

If clamping pressure is uneven or excessive, the magnet fractures internally before external cracks appear.

Symptoms:
Random chips or long diagonal cracks.

Engineering fix:
Use torque-controlled fixtures and soft pads; apply distributed compression.

2.3 Segmenting magnets inside motor rotors or stators

Segmented NdFeB magnets are often used in:

• High-speed rotors
• Halbach arrays
• Encoders
• BLDC motors

But if adhesive gaps vary, each magnet experiences different forces during rotation.

Failure modes include:

• Edge cracking
• Corner chipping
• Full fracture during acceleration

Prevention

• Maintain identical gap thickness
• Use high-strength flexible adhesives
• Add retaining sleeves (carbon fiber, titanium, stainless steel)

Magnetstek often supplies carbon-fiber or titanium sleeves for high-RPM projects (10,000–80,000 rpm).

2.4 Thermal mismatch between magnet and housing

NdFeB magnets expand less than steel or aluminum when heated.
During temperature cycles:

• Housing expands more
• Stress transfers to the magnet
• Cracks eventually propagate

Example coefficients of thermal expansion (CTE)

Solution

• Maintain a gap and use flexible adhesive
• Avoid rigid curing epoxies
• Add compliant layers where possible

2.5 Retaining rings or sleeves applying uneven pressure

Modern electric motors use stainless steel, titanium, or carbon-fiber sleeves to hold magnets in place.

If the sleeve fit is too tight, the compressive stress can exceed the magnet’s limit and lead to cracking during:

• Assembly
• High-speed rotation
• Temperature rise

Correct design must consider burst pressure, sleeve modulus, interference, and speed.

3. Handling-Related Causes of NdFeB Magnet Cracking

Even before assembly, magnets can crack during routine operations.

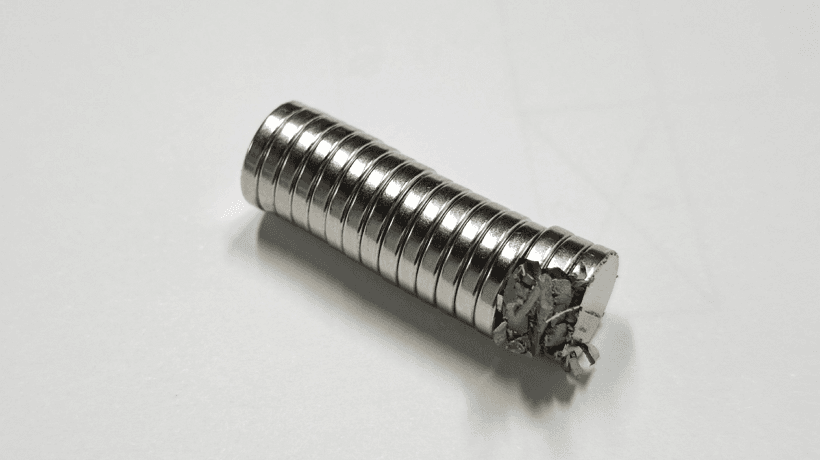

3.1 Magnetic attraction impact (“snap together”)

NdFeB magnets attract each other with extreme force.

When two custom neodymium magnets accidentally collide:

• Surface chips
• Edge fractures
• Deep micro-cracks
• Full breakage

This is the most common handling failure in workshops.

3.2 Metal tools hitting magnets

Using metal tweezers, screwdrivers, or pliers can easily chip magnet edges.

Recommended practice:
Use plastic tools, nylon tweezers, silicone pads.

3.3 Dropping magnets onto hard surfaces

A 5–10 cm drop can crack NdFeB magnets.

Strict handling training is necessary for production teams.

3.4 Improper storage causing sudden attraction

If magnets are not separated with spacers, sudden sliding collisions cause damage.

Use:

• Rubber sheets
• Cardboard separators
• Anti-collision fixtures

Magnetstek ships all custom NdFeB magnets with proper separation to prevent this exact issue.

4. Operational Forces That Crack NdFeB Magnets

Even in use, magnets experience mechanical stress, especially in dynamic systems.

4.1 Centrifugal force in high-speed motors

At high RPM, a magnet can crack when:

• Rotational stress exceeds tensile strength
• Adhesive is insufficient
• Sleeve thickness is too thin
• Magnet segments are unevenly distributed

Example

At 20,000 rpm, the radial load on a 20 mm arc magnet can exceed 40–70 MPa, dangerously close to NdFeB’s tensile strength[1]. This is why carbon-fiber or titanium sleeves[2] are essential for EV and high-speed applications.

4.2 Vibration and shock

Mechanical shock or long-term vibration can produce fatigue-like micro-cracking.

Industries affected:

• Automotive motors
• Industrial servo motors
• UAV propulsion systems
• Aerospace actuators

4.3 Corrosion-induced cracking

When corrosion penetrates coating defects:

1. NdFeB grains expand
2. Internal pressure increases
3. Cracks form under the coating
4. Magnet eventually breaks apart

This is common with poor-quality NiCuNi coatings.

Recommended coatings:

• Epoxy (best for moisture)
• Parylene (best for medical + corrosion)
• NiCuNi + epoxy hybrid
• Gold plating (thin but reliable)

Magnetstek provides enhanced coating options for corrosive environments.

5. Design Mistakes That Lead to Magnet Cracking

5.1 Sharp corners on magnets

Corners concentrate stress.
Any small impact first damages corners.

Best practice:
Use chamfers or round edges.

5.2 Overconstrained magnetic circuits

If the magnet cannot freely expand under temperature changes, internal stress builds up.

5.3 Incorrect tolerances

Designers often specify tolerances that the material cannot handle.

For example, ±0.01 mm tolerances on sintered NdFeB are unrealistic and increase cracking risk during machining.

Realistic machining tolerances:
±0.05–0.10 mm depending on size.

5.4 Magnetizing after assembly (sometimes dangerous)

Some assemblies cannot withstand the forces generated during magnetization.

Result:
Magnet cracks immediately after magnetizing pulse.

6. Preventing NdFeB Magnet Cracking: Engineering Solutions

Magnetstek works closely with engineers to prevent cracking through proper design and assembly optimization. Below are the most effective approaches.

6.1 Switch from press-fit to adhesive bonding

Use:

• Structural epoxy
• Flexible high-temperature adhesive
• Urethane-based adhesives for vibration environments

6.2 Use retaining sleeves for high-speed motors

Benefits:

• Contains centrifugal force
• Protects magnets from radial shock
• Improves mechanical integrity

Common options:

• Carbon fiber (lightweight, strongest)
• Titanium (high strength, non-magnetic)
• Stainless steel (cost-effective)

6.3 Add mechanical chamfers

Corners should be:

• 45° chamfer
• R0.3–R1 round edge

This significantly reduces chipping.

6.4 Choose the right coating

Coating failure is one of the leading causes of cracking due to corrosion.

Best choices depend on environment:

6.5 Use plastic or composite carriers

Avoid direct metal-on-magnet contact during assembly.

6.6 Ensure proper gap & thermal design

Include:

• Clearance of 0.02–0.05 mm
• Compliant adhesives
• Uniform adhesive thickness

6.7 Utilize finite element analysis (FEA)

FEA can predict:

• Stress concentration
• Sleeve pressure
• Temperature deformation
• Magnet shifting forces

Magnetstek provides FEA support for custom NdFeB magnet assemblies.

7. When You Need Custom NdFeB Magnets

Many cracking failures stem from forcing standard commercial magnets into applications that require custom solutions.

Custom neodymium magnets solve:

• Mounting & mechanical compatibility
• Special shapes (arcs, segments, custom rings)
• Tight tolerances
• High-speed demands
• Temperature performance
• Specialized coatings
• Assembly with back iron, sleeves, housings

Magnetstek specializes in custom NdFeB magnets and full magnetic assemblies for motor, sensor, encoder, automation, and robotics applications.

8. Summary: Why NdFeB Magnets Crack

Main causes

1. Brittle material properties
2. Press-fit assembly stress
3. Thermal expansion mismatch
4. Accidental collisions during handling
5. High-speed centrifugal force
6. Sleeve overpressure
7. Vibration or shock
8. Corrosion under coatings
9. Improper magnet tolerances
10. Incorrect adhesive or bonding methods

The solution

Use best practices in assembly, mechanical design, and coating selection, and when needed, rely on custom NdFeB magnets and engineered magnetic assemblies designed specifically for the application.

Magnetstek provides:

• Custom NdFeB magnets in all grades
• Custom neodymium magnet assemblies
• Coating options for all environments
• FEA-supported mechanical design
• Sleeved rotor magnet assemblies
• Halbach arrays
• Glue & bonding optimization
• Precision machining

9. Frequently Asked Questions (FAQ)

(SEO-rich, based on “People Also Ask”)

1. Why do NdFeB magnets crack so easily?

Because they are sintered ceramics with very low fracture toughness. Small impacts or mechanical stresses exceed their tensile strength.

2. Can cracked neodymium magnets still be used?

Not recommended. Cracks grow under vibration or thermal cycling, eventually causing failure.

3. How do I prevent magnets from snapping together and breaking?

Use spacers, plastic separators, or handling jigs. Always keep magnets at safe distances.

4. Does temperature cause cracking in NdFeB magnets?

Yes. CTE mismatch between magnet and housing creates internal mechanical stress.

5. What coatings help prevent cracking?

Coatings don’t stop cracking directly, but good coatings (epoxy, Parylene) prevent corrosion, which leads to cracking.

6. Why do magnets break in high-speed motors?

Centrifugal force increases exponentially with RPM. Without proper sleeves, magnets crack under tension.

7. Are custom NdFeB magnets stronger than standard ones?

Strength depends on grade, but custom magnets are optimized for assembly and mechanical durability.

8. Does adhesive bonding reduce cracking?

Yes, flexible adhesives absorb stress and prevent mechanical overload.

9. Can Magnetstek make custom-shaped NdFeB magnets?

Yes—arcs, wedges, rings, segments, radial magnets, multipole rings, and more.

10. What is the most reliable way to keep magnets from cracking in motors?

Use a carbon-fiber or titanium sleeve plus proper adhesive bonding and thermal gap design.

Conclusion

NdFeB magnets are the strongest permanent magnets in the world, yet among the most fragile mechanically. Understanding cracking mechanisms is essential for engineers designing high-performance motors, encoders, actuators, and magnetic assemblies.

By applying proper assembly methods, selecting the right coatings, and using optimized mechanical structures such as sleeves and adhesives, engineers can eliminate cracking and significantly extend product life.

For demanding applications, Magnetstek provides custom NdFeB magnets and engineered magnet assemblies designed to resist cracking, vibration, thermal cycles, and high-speed stress.
